Project Overview
This project involves the supply of Nylon PA6 rods to a customer in Panama, covering two specifications:
• Ø100mm × 2000mm – 13 pcs
• Ø90mm × 2000mm – 5 pcs
The order was completed with full documentation, including proforma invoice, material inspection report, dimensional inspection report, and technical data sheet, ensuring complete traceability and quality assurance.
Product Description
The supplied product is Nylon PA6 rod (Polyamide 6), manufactured by extrusion process.
It offers:
• High wear resistance
• Excellent mechanical strength
• Good impact resistance
• Low friction coefficient
According to the data sheet, PA6 is widely used in bushings, rollers, gears, and sliding components.
👉 Related product page: Oil Nylon Sheet & Rod
Inspection & Quality Control
Material Inspection
A full material inspection report was provided before shipment, covering:
• Density: 1.13–1.15 g/cm³
• Tensile strength: ≥65 MPa
• Flexural strength: ≥85 MPa
• Hardness: ≥80 Shore D
• Water absorption and heat resistance
All results meet the required standards and are approved for delivery.
Dimensional Inspection
All rods were checked before shipment:
• Ø90mm actual diameter: approx. 93mm
• Ø100mm actual diameter: approx. 103mm
• Length tolerance within required range (2000mm ± tolerance)
The inspection confirms all dimensions meet customer requirements.
Inspection Photos

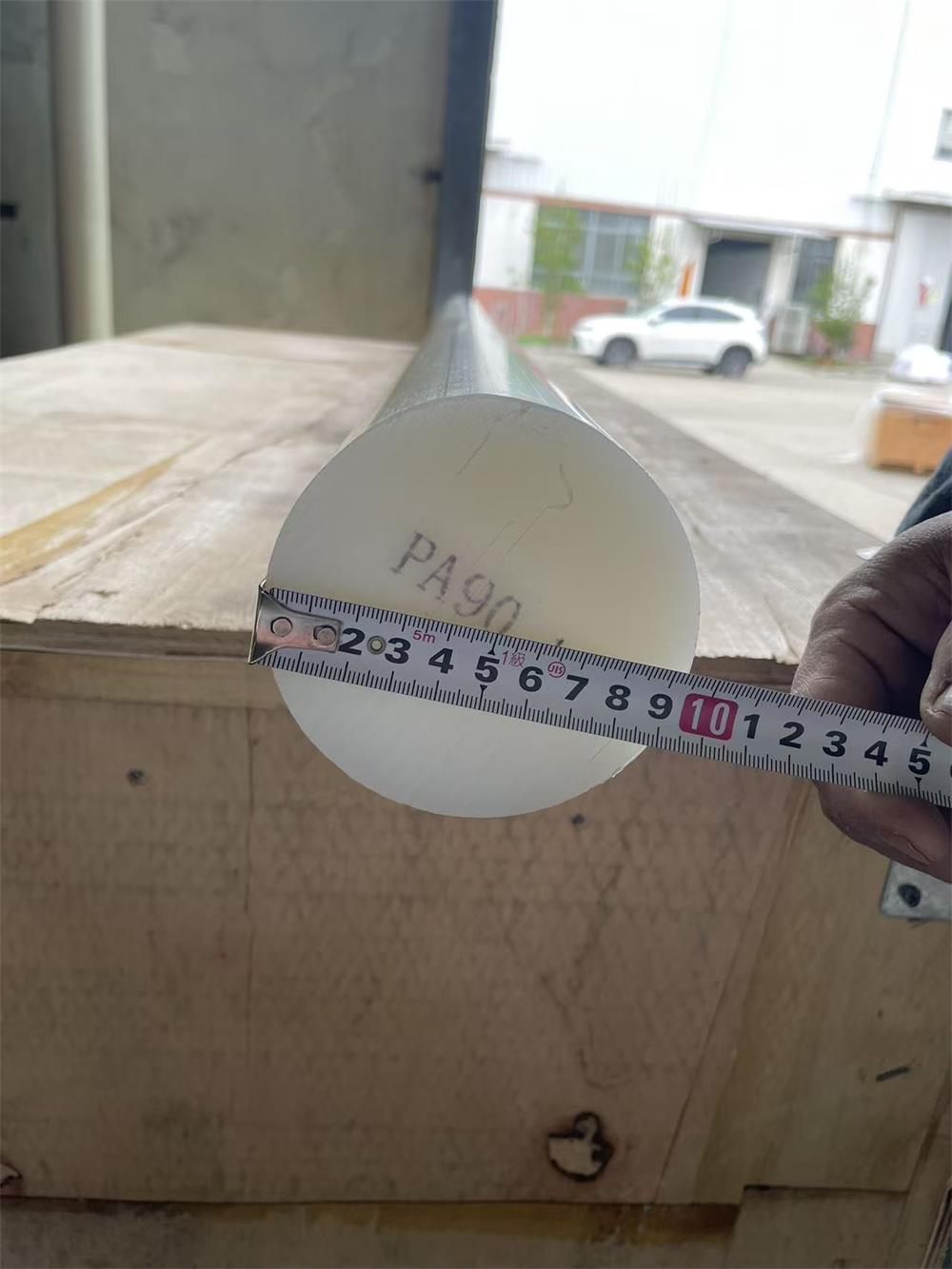

Ø90mm Nylon Rod Inspection
alt：nylon rod diameter 90mm measurement inspection PA6 rod

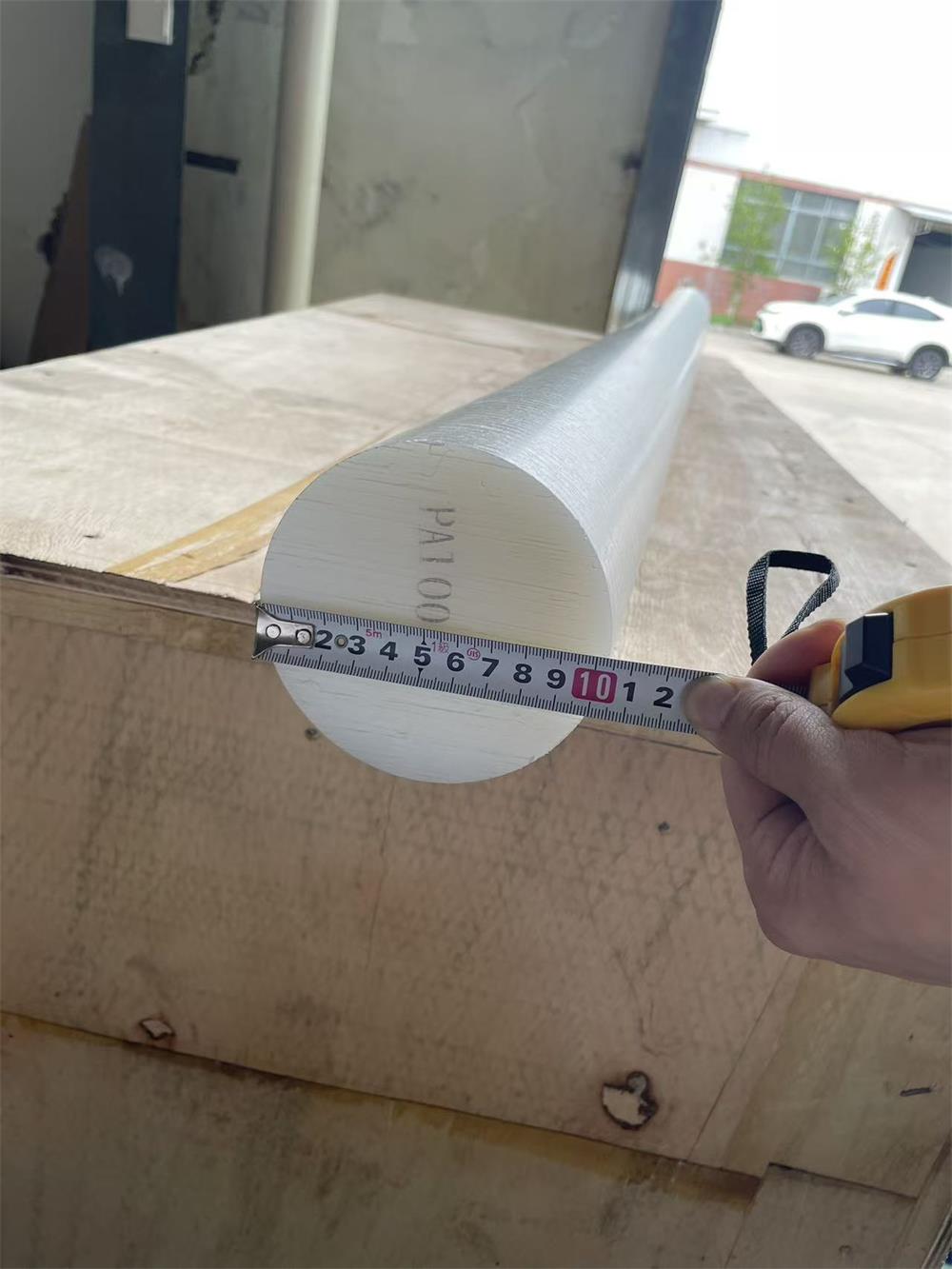

Ø100mm Nylon Rod Inspection
alt：nylon rod diameter 100mm measurement inspection PA6 rod

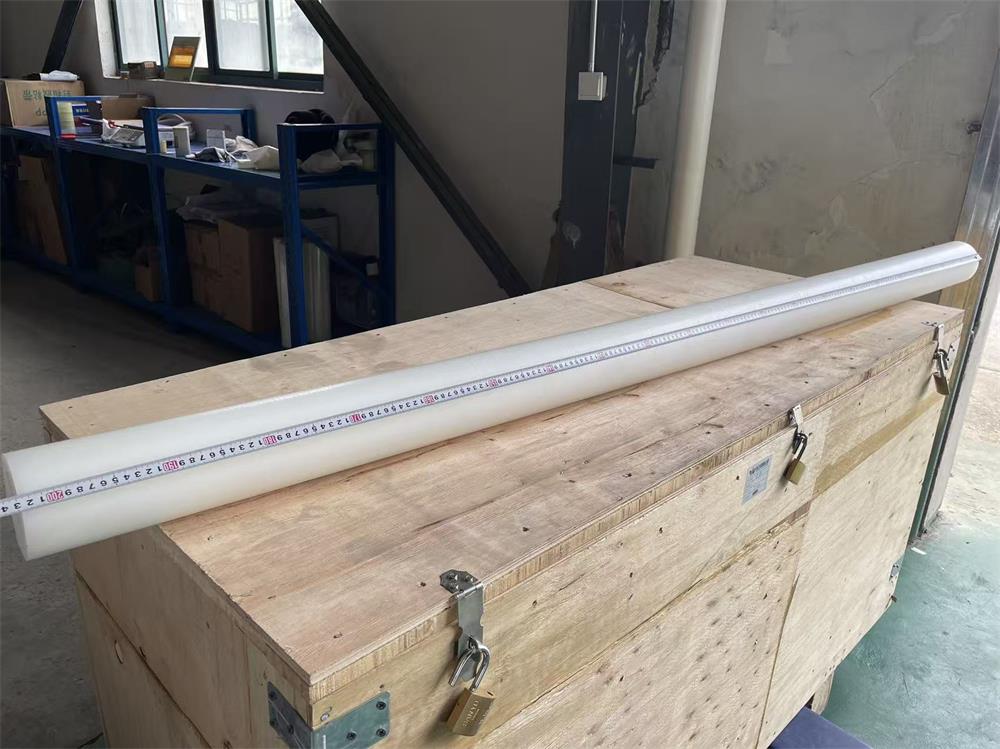

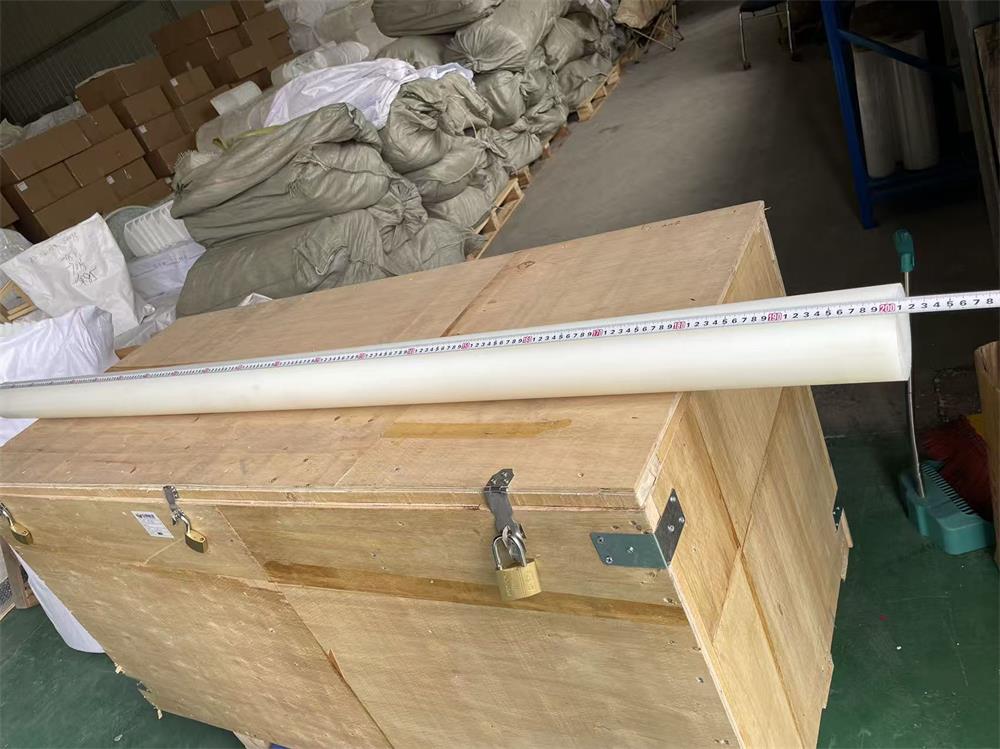

Length Measurement
alt：nylon rod length measurement 2000mm inspection PA6 rod
Packing & Delivery
The products were packed securely for export:
• Packing: One pallet
• Gross Weight: 355.6 kgs
• Net Weight: 337.4 kgs
• Measurement: 2.04 × 0.53 × 0.54 m
• Volume: 0.58 CBM
The rods were protected with film wrapping and fixed on pallet to prevent damage during transportation.
Project Conclusion
All Nylon PA6 rods were inspected and approved before shipment, with complete documentation provided to the customer.
This project demonstrates our ability to supply custom industrial plastic components with full quality control and international export standards.
