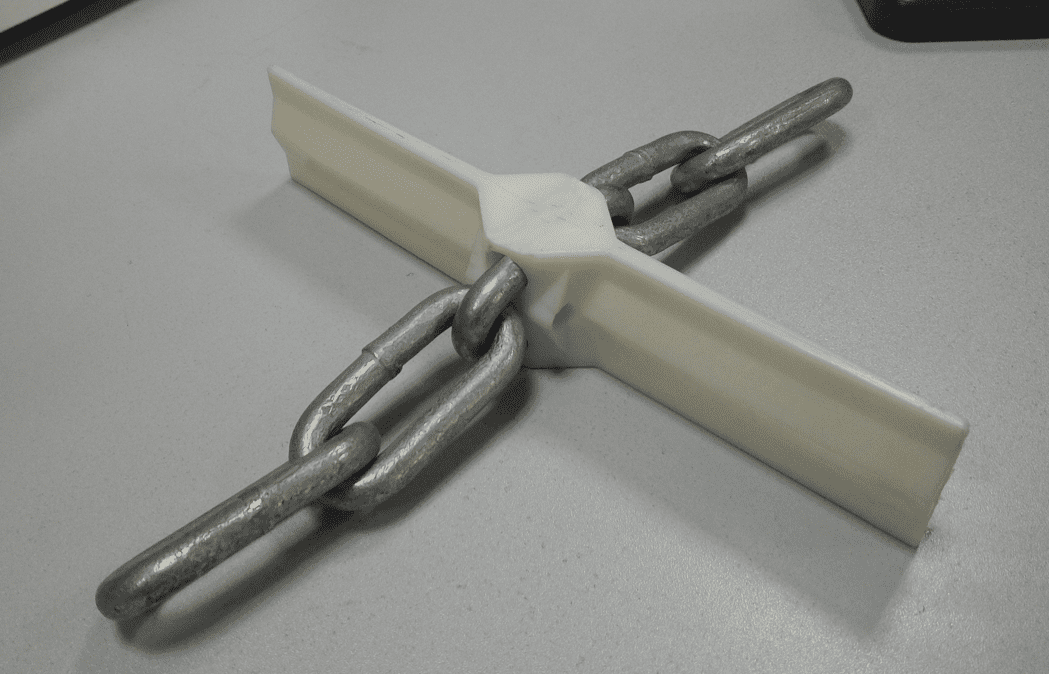

Product Overview

The HGSS conveyor ring chain is designed for horizontal conveying systems and is widely used in grain handling and bulk material transportation.

It is commonly applied in ports, wharfs, and food processing industries where stable and continuous conveying is required.

horizontal conveyor chain system

Application

The HGSS ring chain is widely used in:

  • Port and wharf grain handling systems
  • Rice mills
  • Flour mills
  • Oil and seed processing plants
  • Food processing factories
  • Bulk material conveying systems

Precision and Manufacturing

Our HGSS conveyor ring chain is manufactured with strict control over key dimensions to ensure reliable performance.

The tolerance of pitch and width between inner plates is controlled within ±0.4 mm, which is critical for maintaining smooth engagement and stable operation of the conveyor system.

This level of precision helps:

  • Reduce vibration and noise
  • Ensure smooth chain movement
  • Improve overall system reliability

grain handling ring chain

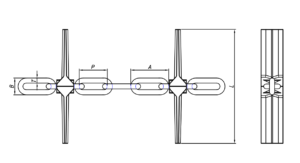

Technical Drawing

HGSS conveyor ring chain

Specification

Conveyor   model Nylon flight
attachment
model		 Chain
Pitch
P		 A B T Plate
channels
L		 Flight
attachment
width H
GSS16 HF16 55 74 32.5 10 148 43.5
GSS20 HF20 55 74 32.5 10 188 43.5
GSS25 HF25 55 74 32.5 10 225 43.5
GSS32 HF32 70 95 45 14 300 54.5
GSS40 HF40 70 95 45 14 382 54.5

The installation spacing for nylon scrapers is typically one scraper every four chain links.
We recommend adding one PU scraper after every 4–6 nylon scrapers to effectively remove material residue from the scraper slot.

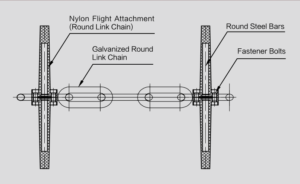

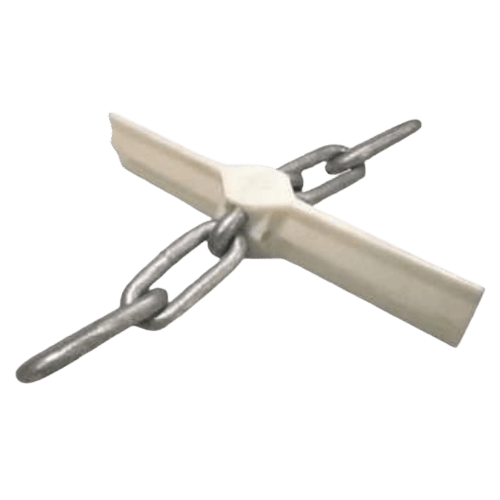

Round Link Chain Attachment Diagram

round chain attachment illustration

Performance Advantages

The HGSS conveyor ring chain offers:

  • Stable and reliable operation in continuous conveying
  • High dimensional accuracy for smooth transmission
  • Strong structure for heavy-duty applications
  • Reduced wear due to precise matching
  • Long service life in demanding environments

Function in Conveyor System

The ring chain plays a key role in horizontal conveying systems by:

  • Transmitting power along the conveyor
  • Moving bulk materials efficiently
  • Supporting stable operation over long distances

Related Components

For optimal performance, the chain should be used together with matching conveyor components:

👉 Conveyor sprocket

hgss ring chain conveyor sprocket
Ring Chain Sprocket

👉 Scraper flight

👉Ring Chain Connection

ring chain connection
Ring chain connection

Customization

We can provide customized HGSS conveyor ring chains based on your requirements:

  • Chain dimensions
  • Pitch and width specifications
  • Application conditions
  • Conveyor system design



👉Not sure if HGSS ring chain is suitable for your conveyor system?
Send us your working conditions or drawings, and we will recommend the most suitable solution.
