What Is a Screw Conveyor Shaft?

A screw conveyor shaft is the central component of an auger system, responsible for transmitting torque and supporting the screw flights during operation.

It connects the drive unit to the screw flight assembly, ensuring stable rotation and consistent material conveying under continuous working conditions.

We provide both standard and custom screw conveyor shafts, including hollow shaft, large diameter assemblies, and variable pitch screw flight configurations.

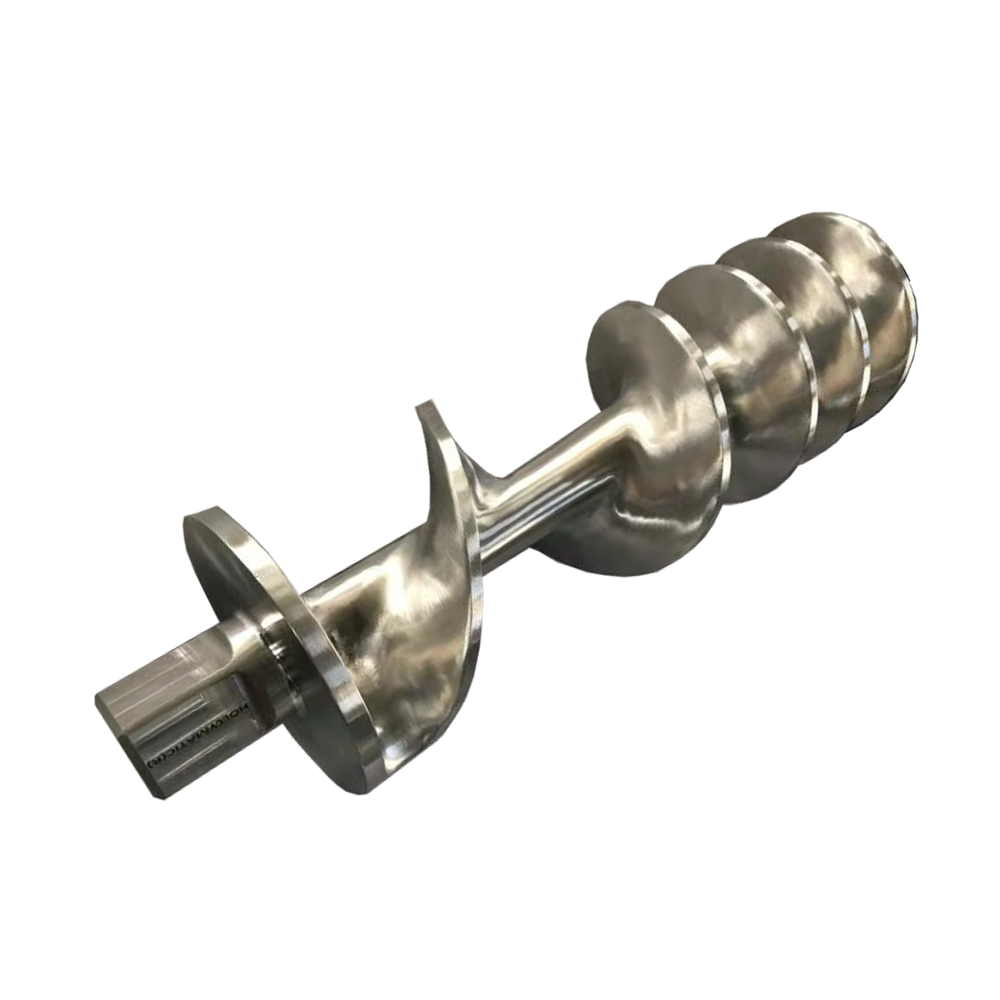

Types of Screw Conveyor Shafts

Solid Shaft

• High strength and rigidity
• Suitable for heavy-duty conveying applications
• Provides stable support for large diameter screw flights

👉 Most commonly used in standard industrial screw conveyors

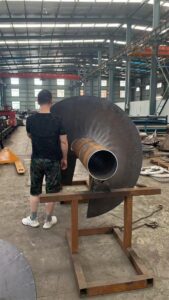

Hollow Shaft

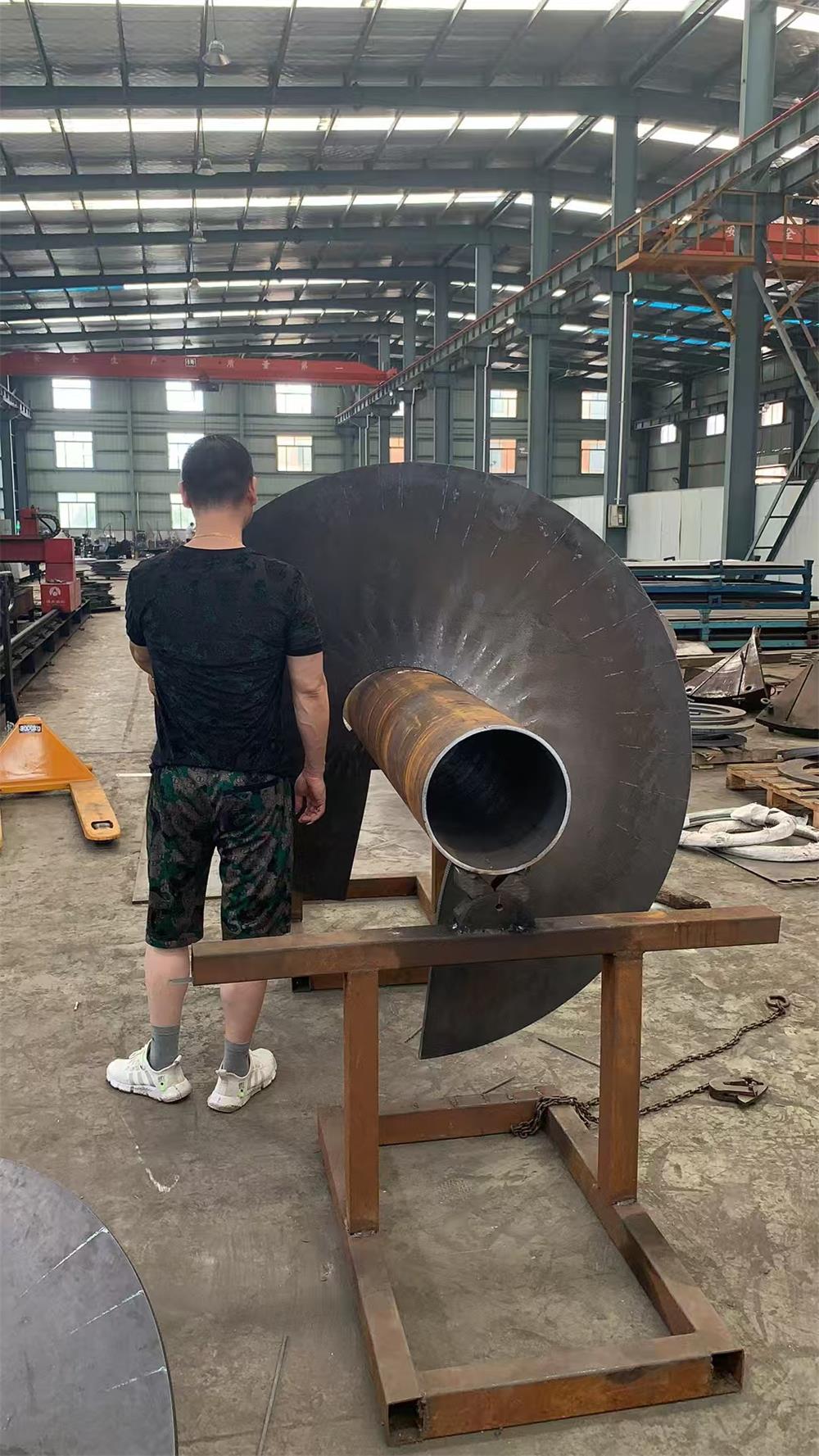

• Hollow pipe shaft design for large diameter screw conveyor assemblies
• Reduces overall weight compared with solid shaft structures
• Suitable for custom screw shaft assemblies with large diameter or special pitch requirements
• Available with welded screw flights according to client drawings

Material Options

We manufacture screw conveyor shafts using different materials depending on the working environment:

• Carbon Steel – cost-effective for general applications
• Alloy Steel – improved strength and wear resistance

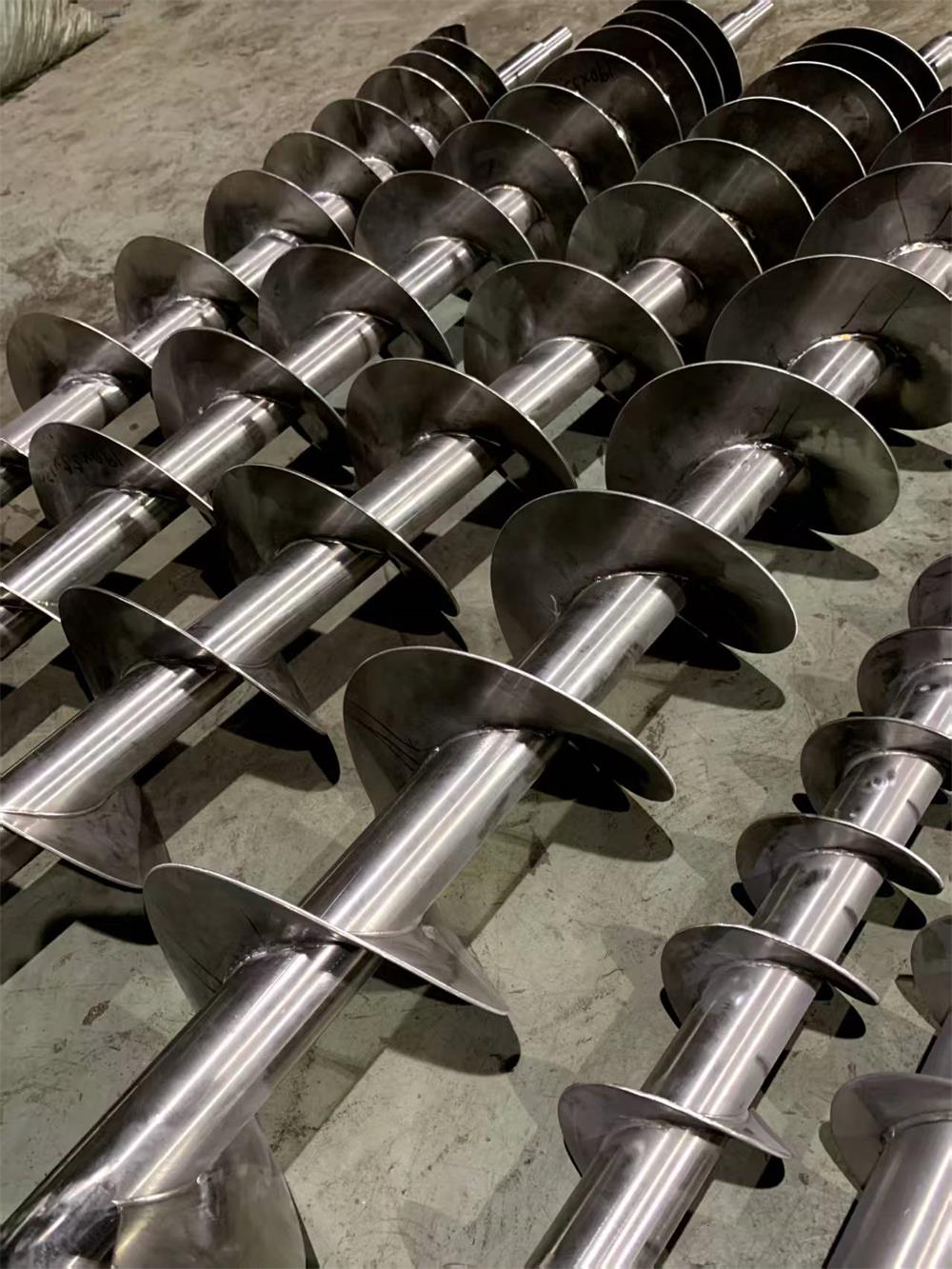

• Stainless Steel – suitable for corrosive or food-grade environments

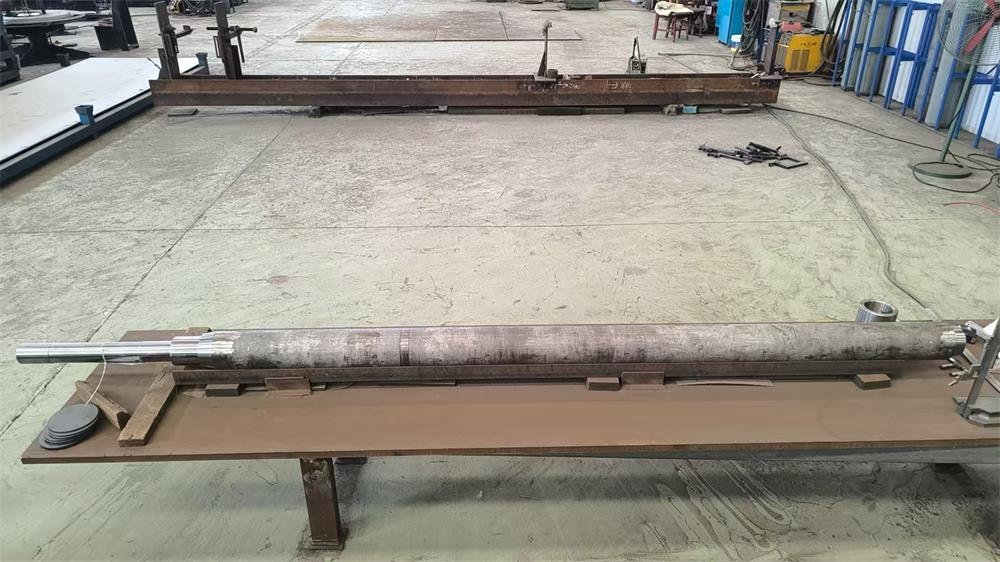

Custom Machining Capabilities

We provide fully customized shaft solutions based on your drawings or specifications:

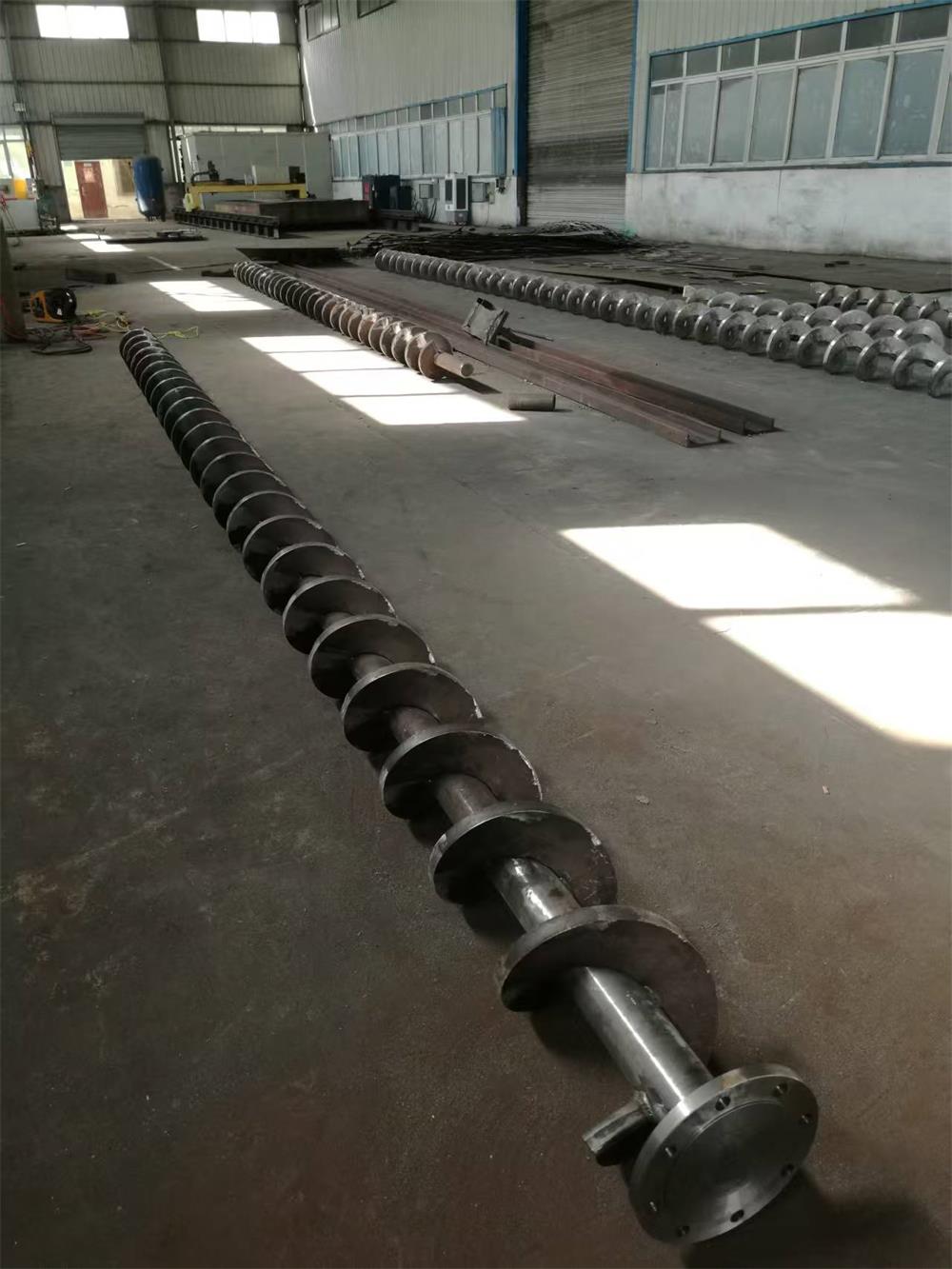

• Shaft diameter and total length

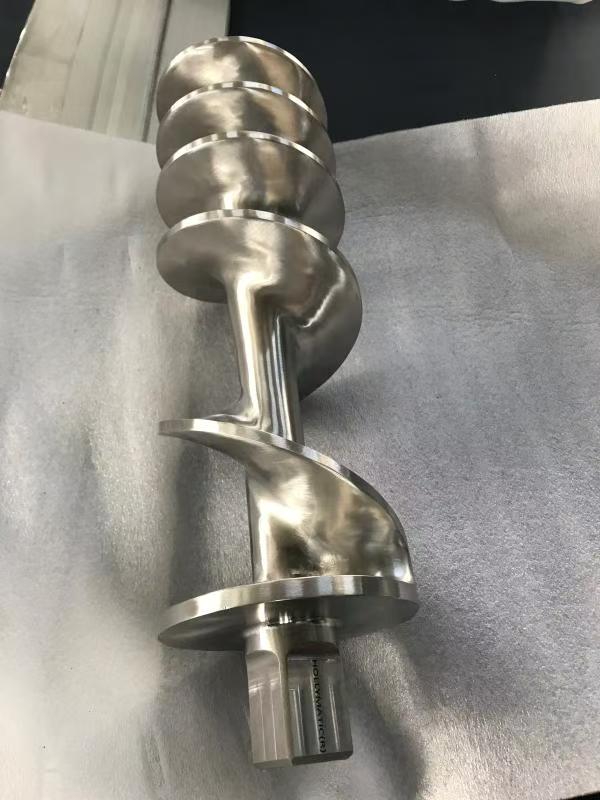

• End machining (keyway, thread, coupling, flange, etc.)
• Straightness and tolerance control

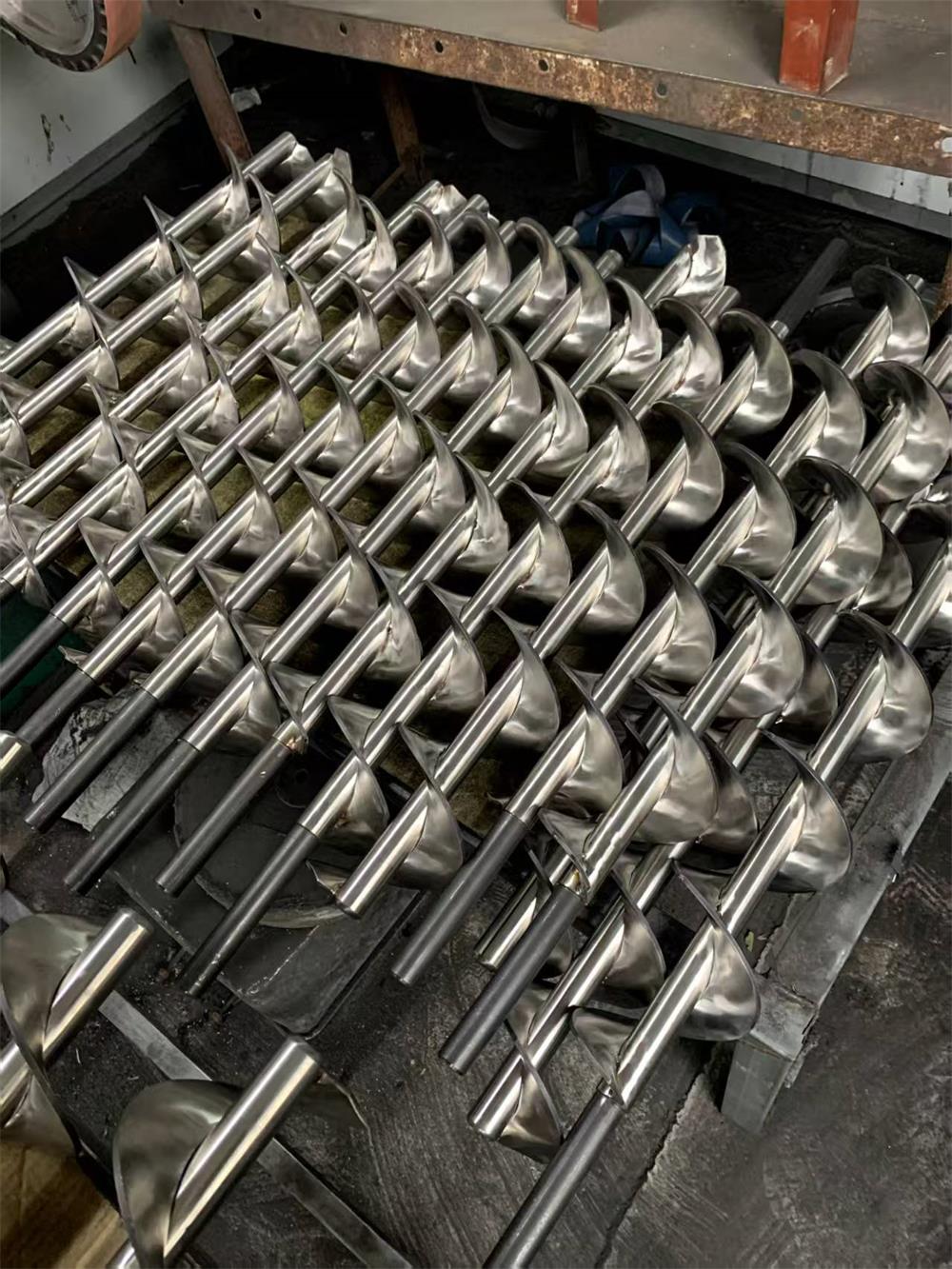

• Surface treatment (anti-corrosion, coating, polishing)

👉 OEM manufacturing is our main service

Screw Conveyor Shaft Manufacturing Video

These videos shows the welding and assembly process of screw conveyor shafts in our factory, ensuring stable structure and reliable performance.

Real Production of Screw Conveyor Shaft

This video shows the welding process of screw flights onto the shaft, ensuring strong bonding and structural integrity for long-term operation.

Screw Conveyor Shaft Assembly Process

This video shows the assembly of screw conveyor shafts with flights, ensuring proper alignment and smooth conveying performance.

👉 Send us your drawing or specifications to get a custom screw conveyor shaft solution.

Compatibility with Screw Flights

Our screw conveyor shafts are designed to match different screw flight types:

• Continuous Screw Flight
• Sectional Screw Flight
• Tapered Screw Flight

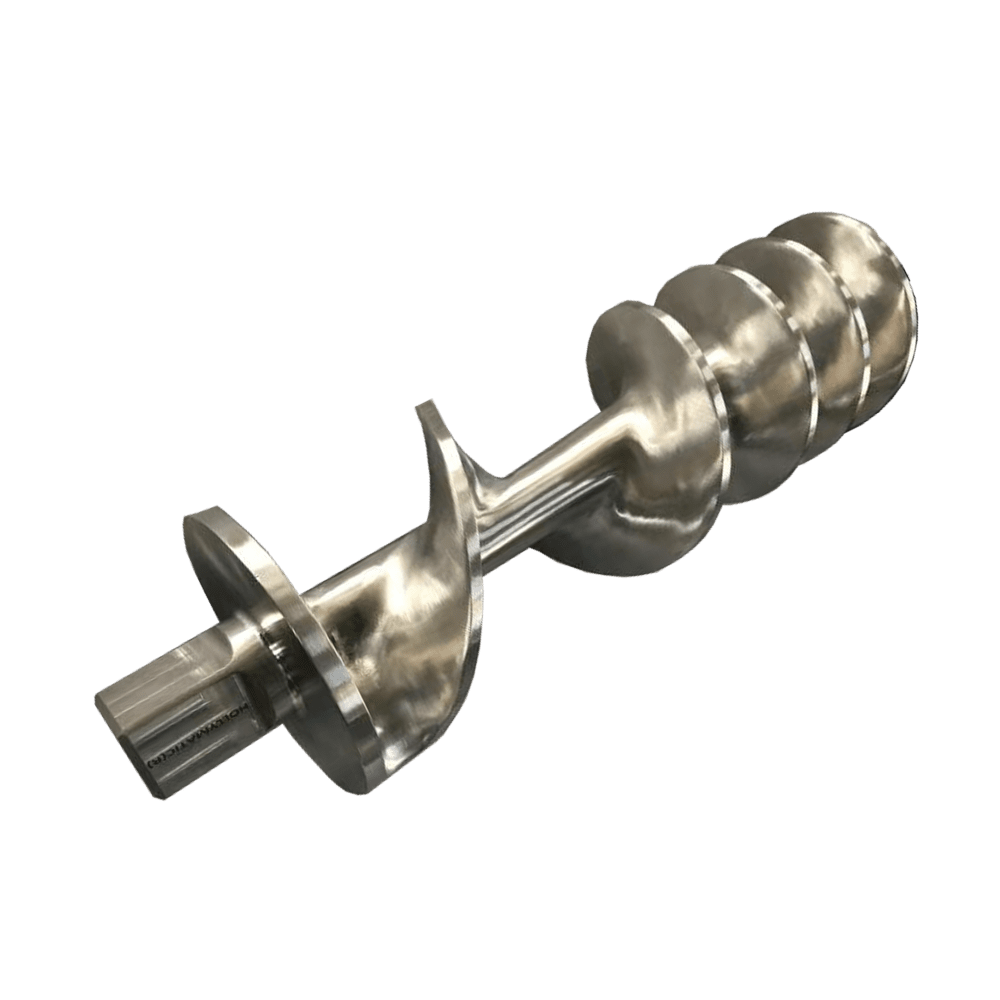

Variable Pitch Screw Flight Assembly

Variable pitch screw flights are used in applications where material flow needs to be controlled or adjusted along the conveying path.

Compared with constant pitch designs, variable pitch screw assemblies can:

• Improve feeding efficiency at the inlet
• Control material flow rate along the conveyor
• Reduce material buildup and improve discharge performance

We can manufacture screw conveyor shafts with variable pitch screw flights based on specific application requirements and client drawings.

Custom variable pitch designs are available for different materials and conveying conditions.

Applications

Screw conveyor shafts are widely used in:

• Grain handling systems
• Feed and food processing plants
• Chemical and powder conveying
• Cement and bulk material transport
• General industrial conveying equipment

Related Custom Screw Components

We also manufacture special screw components for customized applications, including:

• Hollow spiral screws used in drying and heat-transfer equipment
• Custom screw assemblies based on specific system requirements

FAQ – Screw Conveyor Shaft

Q1: What is the difference between solid shaft and hollow shaft?

A: Solid shafts provide higher strength and rigidity, while hollow shafts reduce weight and are more suitable for large diameter or custom screw conveyor assemblies.

Q2: Can you manufacture screw conveyor shafts based on drawings?

A: Yes, we specialize in custom manufacturing according to client drawings, including shaft diameter, length, material, and end machining.

Q3: What screw flight types can be matched with the shaft?

A: Our screw conveyor shafts can be matched with continuous, sectional, tapered, and variable pitch screw flights depending on application requirements.

Q4: What industries use screw conveyor shafts?

A: Screw conveyor shafts are widely used in grain handling, feed processing, chemical, cement, and bulk material conveying industries.

Q5: Do you support variable pitch screw flight assemblies?

A: Yes, we can manufacture screw conveyor shafts with variable pitch screw flights based on application requirements and client drawings.

👉 Send us your drawing or specifications for a fast quotation

👉 Custom screw conveyor shafts can be produced with short lead time
👉 Send your drawing to get a customized screw conveyor shaft solution.
