Drag Chain Conveyor Paddle

Description

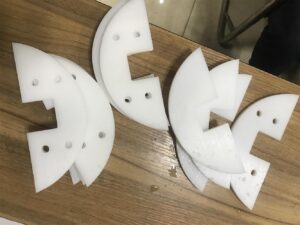

Drag chain conveyor paddles are key components used to move bulk materials through scraper and drag conveyor systems. They are commonly used with Redler conveyor chains and bulk flow conveyor chains.

Also known as scraper flights or chain paddles, they push and transport material along the conveyor.

Materials and Sizes

They are commonly manufactured from UHMWPE because of its excellent wear resistance and low-friction, non-stick surface. HDPE and PU materials are also available for different operating conditions.

Sizes, shapes, thicknesses, and mounting designs can be customized according to the chain and conveyor requirements.

Reference link

We have flat type which matches our GLF 81X Scraper Conveyor Chain, reference link:

https://www.ytconveyor.com/product/bf-flat-drag-conveyor-flight/

https://www.ytconveyor.com/product/glf-81x-scraper-conveyor-chain/

BR arch type drag chain conveyor paddle is for our GLR conveyor scraper chain, reference link:

https://www.ytconveyor.com/product/br-arc-drag-conveyor-flight/

For complete drag conveyor system matching, explore our chain conveyor components, including scraper chains, sprockets, drag flights, nylon rollers, and other compatible components for bulk material handling systems.

Need a Similar Product?

Send us your specifications or requirements — our engineers will review and get back to you within 24 hours.
