King Tiger Heavy Duty Bucket Overview

Our King Tiger series is designed as a high-performance alternative compatible with the Tiger series buckets from Maxi-Lift, offering similar structural strength and durability for demanding applications.

King Tiger series heavy-duty elevator buckets are designed for demanding applications requiring higher strength, durability, and wear resistance.

This series includes two main types:

  • DK type – deep bottom bucket
  • SK type – shallow bottom bucket

Both types are available in imperial and metric sizes.

Interchangeable Design

King Tiger buckets are designed as reinforced and interchangeable versions of standard bucket types, including:

This allows easy replacement and upgrading without major system changes.

Optimized Design

The King Tiger series features reinforced walls, thicker corners, and an enhanced front lip design. These improvements provide:

  • Higher structural strength
  • Better abrasion resistance
  • Improved discharge performance



👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.



Material Advantage

The buckets are manufactured from modified high molecular polymer materials, offering better wear resistance and impact resistance compared with standard HDPE materials.

Key advantages compared with standard buckets:

Optimized Design

This bucket series features reinforced walls, thicker corner sections, and an enhanced front lip design, resulting in high structural strength, excellent wear resistance, and improved material discharge performance.

Superior Material

The bucket is made from a modified high-molecular-weight polymer, offering superior abrasion resistance and impact strength compared to standard HDPE materials.

Extended Service Life

This enhanced bucket design features an extra-thick construction, making the King Tiger Series one of the most durable elevator bucket options available.

Enhanced Customer Value

Helps reduce elevator maintenance time while lowering overall operating costs.

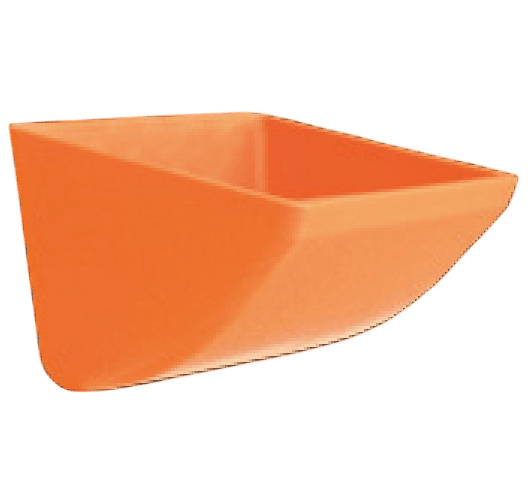

Imperial DK Heavy Duty Elevator Bucket

The DK type is a reinforced version of the traditional deep bottom bucket, offering higher capacity and durability for heavy-duty conveying applications.

A reinforced, interchangeable version of the standard imperial D-type deep bucket.

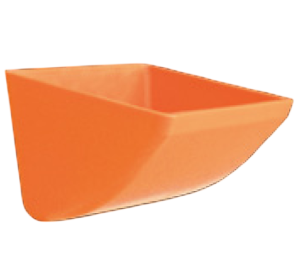

tiger elevator bucket d

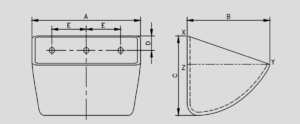

tiger elevator bucket d drawing

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Usable   Level
(Z-Y)+10%		 Water   Level
(Z-Y)
DK7X5 205 142 127 30 120 2 9 1.47 1.75
DK8X5 225 142 127 30 120 2 9 1.62 1.93
DK9X5 253 142 127 30 85 3 9 1.93 2.41
DK10X5 279 142 127 30 90 3 9 2.10 2.60
DK11X5 298 142 127 30 100 3 9 2.21 2.75
DK12X5 326 142 127 30 85 4 9 2.42 3.00
DK8X6 229 168 152 40 120 2 9 2.42 2.83
DK9X6 257 168 152 40 85 3 9 2.65 3.23
DK10X6 283 168 152 40 90 3 9 2.93 3.62
DK11X6 302 168 152 40 100 3 9 3.12 4.01
DK12X6 330 168 152 40 85 4 9 3.48 4.44
DK13X6 349 168 152 40 85 4 9 3.78 4.74
DK14X6 378 168 152 40 95 4 9 4.15 5.08
DK10X7 285 200 178 45 90 3 9 4.07 4.83
DK11X7 304 200 178 45 100 3 9 4.35 5.39
DK12X7 329 200 178 45 85 4 9 4.82 5.81
DK13X7 351 200 178 45 90 4 9 5.58 6.52
DK14X7 380 200 178 45 95 4 9 5.74 6.90
DK15X7 405 200 178 45 100 4 9 6.68 7.61
DK16X7 440 200 178 45 85 5 9 6.95 7.90
DK11X8 310 225 305 50 65 4 9 5.92 6.84
DK12X8 338 225 205 50 85 4 9 6.44 7.46
DK13X8 357 225 205 50 90 4 9 7.13 8.00
DK14X8 385 225 205 50 95 4 9 7.56 8.76
DK15X8 413 225 205 50 80 5 9 8.73 9.47
DK16X8 448 235 205 50 85 5 9 9.08 10.50
DK18X8 483 235 205 50 95 5 9 10.00 11.56
DK20X8 535 235 205 50 90 6 11 11.23 13.00
DK22X8 585 235 205 50 100 6 11 12.65 14.30
DK24X8 630 235 205 50 88 6 11 13.43 15.30
DK16X10 460 286 254 70 73 6 11 14.00 16.00
DK18X10 498 286 254 70 78 6 11 16.02 17.70
DK20X10 545 286 254 70 88 6 11 18.17 19.70
DK22X10 605 292 264 70 100 6 11 19.45 22.7
DK23X10 615 292 264 70 85 7 11 20.33 23.6
DK24X10 635 292 264 70 88 7 11 21.78 24.9
DK25X10 653 292 264 70 90 7 11 22.21 25.5
DK26X10 691 292 264 70 98 7 11 22.99 26.5
DK27X10 701 292 264 70 85 8 11 23.87 27.4
DK28X10 745 292 264 70 90 8 11 24.64 28.4



👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.



Metric DK Heavy Duty Elevator Bucket

A high-strength deep bucket designed for agricultural applications.
A reinforced, fully interchangeable upgrade to the standard metric DS type deep bucket

tiger elevator bucket d

tiger elevator bucket d drawing

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Usable   Level
(Z-Y)+10%		 Water   Level
(Z-Y)
DK1109 111 93 80 25 60 2 7 0.30 0.27
DK1311 136 117 92 30 60 2 7 0.59 0.54
DK1612 162 122 102 32 90 2 7 0.78 0.71
DK1812 189 127 110 32 120 2 9 0.79 0.72
DK2312 237 129 120 35 12 2 9 1.32 1.20
DK2812 289 129 125 35 100 3 9 1.78 1.62
DK1614 167 143 125 40 90 2 7 1.12 1.02
DK1814 192 145 125 40 120 2 9 1.49 1.35
DK2314 237 145 125 40 85 3 9 1.67 1.52
DK2814 285 142 125 40 100 3 9 1.83 2.01
DK2316 238 169 140 45 85 3 9 2.37 2.15
DK2616 266 169 140 45 90 3 9 2.64 2.40
DK2816 290 169 141 45 100 3 9 3.01 2.74
DK3116 318 169 141 45 85 4 9 3.32 3.02
DK3118 316 195 165 45 85 4 9 3.52 3.20
DK3518 358 195 165 45 95 4 9 5.09 4.63
DK4118 419 195 165 45 85 5 9 5.64 5.13
DK2919 295 197 178 45 75 4 9 4.72 4.29
DK3121 319 224 191 45 85 4 9 6.18 5.62
DK3621 369 224 191 45 95 4 9 7.18 6.53
DK4121 421 224 191 45 85 5 9 8.77 7.97
DK4621 470 224 191 45 95 5 9 9.57 8.70
DK5121 520 225 210 55 100 6 11 11.66 10.60
DK2823 289 230 190 45 100 3 9 4.85 4.41

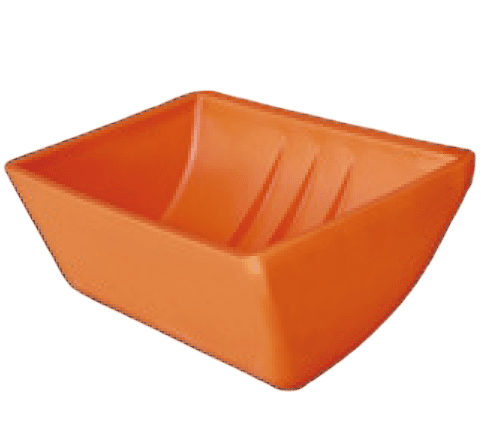

SK Heavy Duty Elevator Bucket

The SK type provides a shallow bottom design, suitable for applications requiring faster discharge and efficient material flow.

High-strength shallow bucket for agricultural applications.

The reinforced and interchangeable version of the DQ and S type shallow buckets.

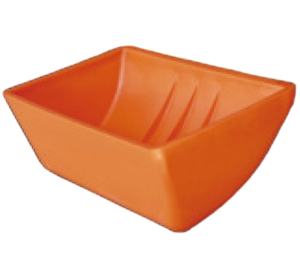

king tiger heavy duty bucket

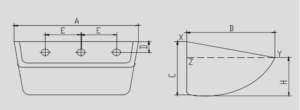

king tiger elevator bucket s

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Usable   Level
(Z-Y)+5%		 Water   Level
(Z-Y)
SK1814 186 140 87 30 100 2 9 0.89 0.85
SK1914 190 146 105 25 100 2 9 1.26 1.20
SK2314 235 143 96 30 120 2 9 1.35 1.29
SK2814 285 143 96 30 90 3 9 1.75 1.67
SK2315 235 155 91 30 120 2 9 1.59 1.51
SK2815 285 155 91 30 90 3 9 1.96 1.87
SK2316 238 170 102 35 120 2 9 1.50 1.43
SK2816 290 165 108 35 90 3 9 2.31 2.20
SK3216 330 165 111 35 80 4 9 2.48 2.36
SK2417 247 178 120 40 120 2 9 2.30 2.18
SK2817 289 178 120 40 90 3 9 2.65 2.52
SK2917 295 181 120 35 115 3 9 3.13 2.98
SK3321 337 219 140 40 85 4 9 4.44 4.23
SK3823 380 233 165 45 100 4 9 6.30 6.00
SK4723 478 233 165 45 100 5 9 8.50 8.10
SK2824 295 248 168 45 100 3 9 5.90 5.60
SK3325 335 265 170 50 85 4 9 6.90 6.55
SK4726 470 265 170 50 95 5 11 9.90 9.40
SK5626 569 265 170 50 120 5 11 12.35 11.75

Applications

King Tiger buckets are suitable for:

  • Grain and feed handling
  • Cement and construction materials
  • Fertilizer and chemical industries
  • Bulk industrial material conveying
