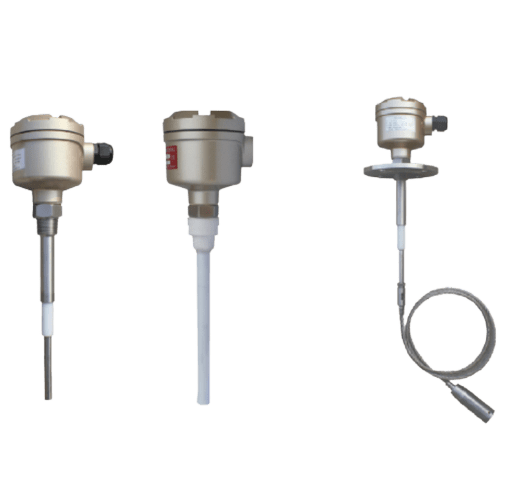

What Is Capacitance Bin Level Sensor

The capacitance bin level sensor is used to detect the level of bulk materials or liquids in silos, hoppers and storage tanks.

It works by monitoring changes in capacitance and provides reliable signals for level control, helping prevent overfilling or empty running in industrial processes.

Working Principle of Capacitance Level Sensor

The capacitance level sensor operates based on the variation of electrical capacitance between the probe and the container wall.

The probe acts as one electrode, while the silo or tank wall acts as the ground electrode. Together, they form a capacitor. When the material level changes, the dielectric properties between these two electrodes also change, resulting in a variation in capacitance.

An internal signal processing unit detects this change continuously. Once the capacitance reaches the preset threshold, the sensor outputs a switching signal.

This allows accurate detection of material level, interface level and process control.

Key Features of SE Capacitance Bin Level Indicator

• Provides stable measurement for adhesive and sticky materials
• Suitable for both conductive and non-conductive media
• Reliable detection for corrosive liquids and harsh environments
• No moving parts, ensuring high reliability and low maintenance
• High sensitivity for different material densities and conditions
• Suitable for both solid level and liquid level detection

Technical Specifications of SE Capacitance Bin Level Indicator

The following technical data is for reference:

• Power Supply: 220VAC / 110VAC, 24VAC / 24VDC
• Contact Capacity: 250VAC / 10A, DC 30V / 10A, SPDT
• Power Consumption: 4.5W
• Time Delay: Adjustable (0–10 s)
• Working Temperature: -25°C to 70°C
• Protection Grade: IP65
• Medium Temperature standard type: -25°C to 80°C
• High-temperature type: up to 200°C
• Ultra-high temperature type: up to 1000°C

Structure Diagram of SE Capacitance Level Sensor

Main Components and Materials:

• Induction Probe: SUS304 or SUS316L
• Insulator: UPE or PTFE
• Ground Electrode: SUS304 or SUS316L
• Process Connection: SUS304 or SUS316L (Standard: 1” PT thread)
• Connection Box: Aluminum alloy with protective coating
• Cable Entry: G3/4”
• Connection Box Cover: Aluminum alloy with protective coating

High-quality materials ensure excellent corrosion resistance and long service life in harsh industrial environments.

Model of SE Series Capacitance Sensor

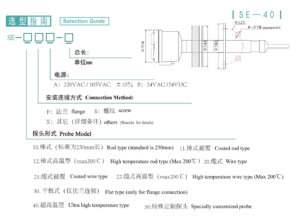

Model Selection Guide

Advantages in Level Detection

The capacitance level sensor provides a versatile and reliable solution for complex material conditions.

It is especially suitable for applications where traditional mechanical level switches may not perform well, such as sticky materials, liquids or interface detection.

Custom Level Detection Solution

Different materials and working conditions require different sensor configurations.

We can recommend the most suitable model based on your material type, density, temperature and installation conditions.

Get the Right Level Sensor for Your Application

Looking for a reliable level detection solution for your silo or hopper?

Send us your material type, working conditions and installation details. We will recommend the most suitable capacitance level sensor for your system.

Contact us today for a quick recommendation and quotation.
