Product Overview

The GLR scraper conveyor chain is a bush roller chain designed for U-type scraper conveyors, especially for TGSU arc scraper conveyor systems.

It is widely used in grain handling, feed processing, and bulk material conveying applications where stable and continuous operation is required.

👉 Matching flight: BR Arc Drag Conveyor Flight

👉 Related sprocket: Sprocket for Conveyor Roller Chain

Material and Manufacturing

Our GLR scraper conveyor chain is manufactured using high-quality medium alloy steel to ensure durability and performance.

  • Chain plate material: 40Mn
  • Pin and roller material: 40Cr

All components are heat-treated to achieve proper surface hardness, providing excellent wear resistance and long service life.

Performance Advantages

The GLR chain offers:

  • High tensile strength for heavy-duty conveying
  • Strong anti-shearing capability under load
  • Excellent wear resistance due to heat treatment
  • Stable performance in continuous operation
  • Smooth conveying and reliable system operation

The chain also has a well-finished surface, ensuring both durability and a clean appearance.

Application

The GLR scraper conveyor chain is mainly used in:

  • U-type scraper conveyors
  • TGSU arc scraper conveyor systems
  • Grain and feed conveying lines
  • Bulk material handling systems

Technical Drawing

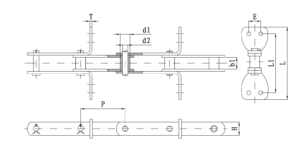

heavy duty scraper chain GLR drawing



GLR series chain is used for TGSU Arc Scrape Conveyor. Install our BR Series U Type Scrape Flight.

Pictures

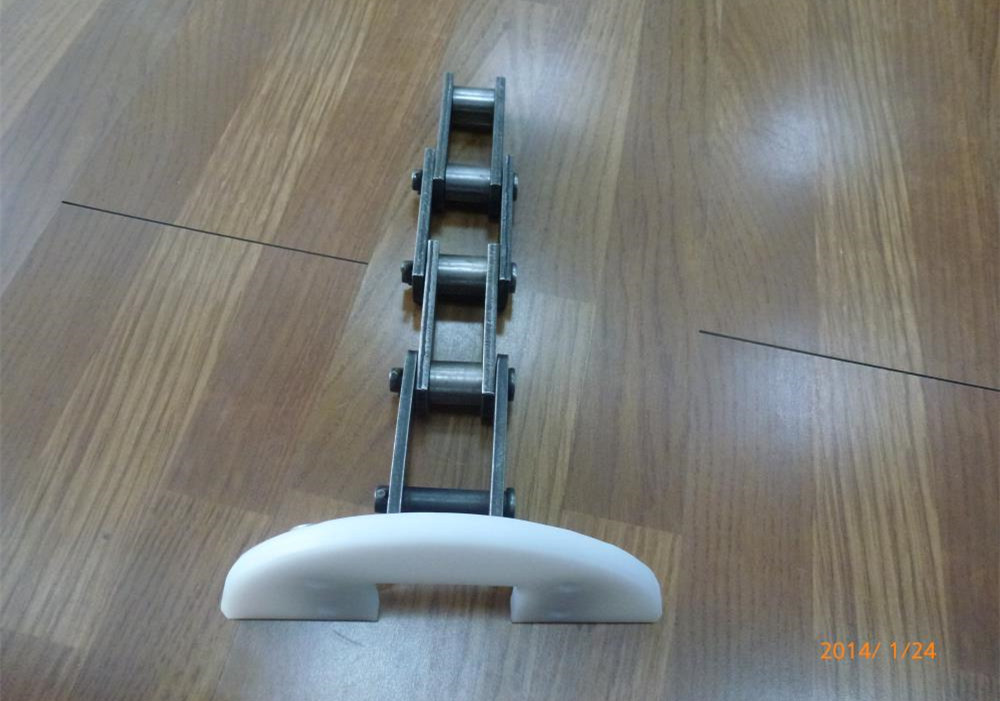

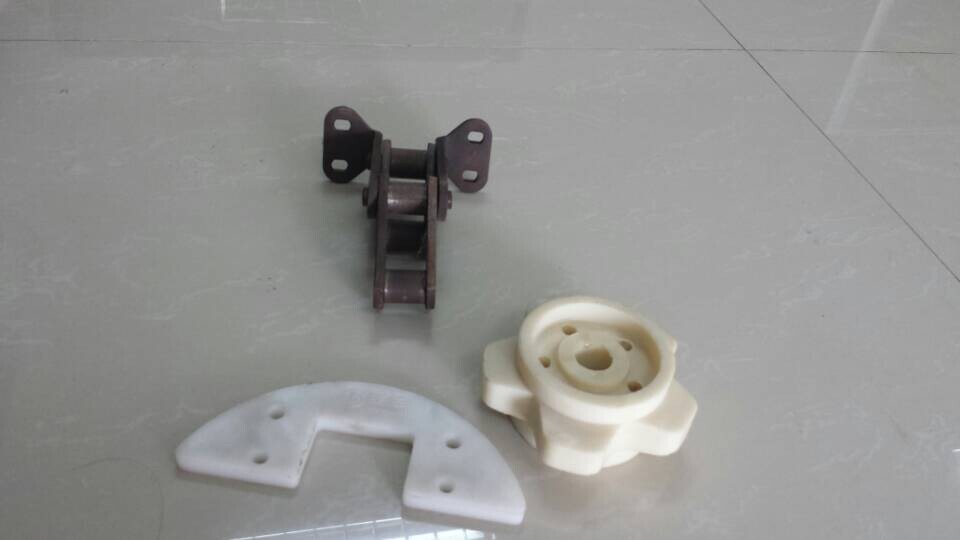

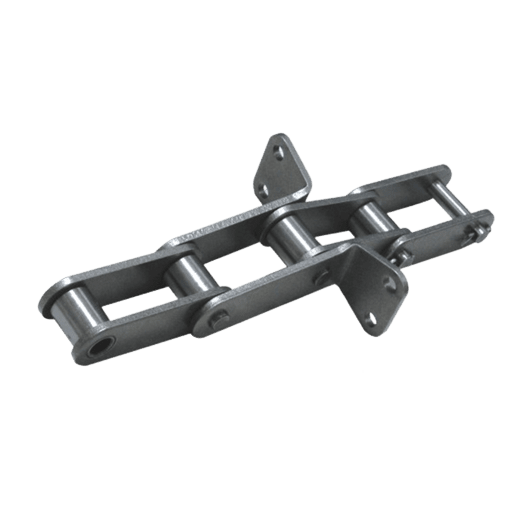

GLR scraper conveyor chain  drag conveyor flight

Specification

Model Pitch
P		 Inner
width
b1		 Roller
dia
d1		 Pin
dia
d2		 Plate
width
H		 Plate
thickness
T		 Bending plate dimension parameters
 Plate
channels
L		 Hole
space
L1		 Hole
space
E		 Hole dia
GLR68(4) 68 26 22.23 9.5 23 4 79 2-Φ7
GLR68(5) 68 25.32 22.23 11.1 29 5 102 32 4-Φ9
GLR66.5(5-6)D 66.5 26.5 22.23 12.7 30 5/6 130 102 32 4-Φ9
GLR100(6)D 100 38.5 36 16 40 6 130 102 32 4-Φ9
GLR60(6)D 60 26 22.23 12.7 30 6 130 100 32 4-Φ9
GLR80(6)D 80 32 28 18 42 6 160 120 32 4-Φ9

Specifications not listed above can be customized based on your requirements. We can also provide reference drawings upon request.

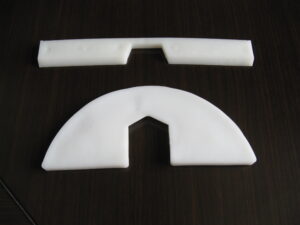

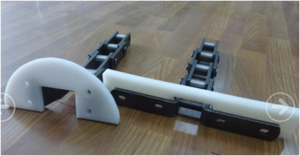

Drag Scraper Chain Conveyor-BR Flight type

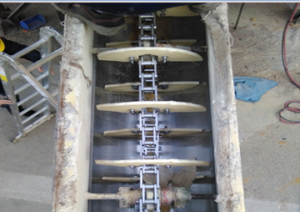

U type scraper chain conveyor   TGSU conveyor chain GLR

Compatibility

The GLR chain is designed to work together with:

Proper matching between chain, flight and sprocket is essential to ensure stable operation, reduce wear, and extend service life.

Customization

We can manufacture the GLR chain according to your requirements:

  • Chain dimensions and pitch
  • Material and heat treatment
  • Application conditions
  • Conveyor system design

If you have drawings or samples, we can produce accordingly.

System Recommendation

A scraper conveyor system consists of chain, sprocket and scraper flights working together.

For best performance, we recommend selecting these components as a complete solution.

👉 View Matching Flight: BR Arc Drag Conveyor Flight

👉 View Sprocket: Sprocket for Conveyor Roller Chain

👉Not sure if GLR chain is suitable for your conveyor system?
Send us your working conditions or drawings, and we will recommend the most suitable chain solution.

FAQ – GLR Scraper Conveyor Chain

What is a GLR scraper conveyor chain?

A GLR scraper conveyor chain is a bush roller chain designed for U-type scraper conveyors. It is commonly used in TGSU arc scraper conveyor systems for stable and continuous bulk material conveying.

What applications are suitable for GLR scraper conveyor chains?

GLR scraper conveyor chains are mainly used in U-type scraper conveyors, grain handling systems, feed processing lines, and bulk material conveying equipment that require smooth and reliable transport.

What materials are used to manufacture GLR scraper conveyor chains?

GLR scraper conveyor chains are typically manufactured using medium alloy steel. Chain plates are commonly made from 40Mn steel, while pins and rollers use 40Cr steel for improved wear resistance and strength.

What are the main features of a GLR scraper conveyor chain?

GLR scraper conveyor chains offer high tensile strength, strong anti-shearing performance, heat-treated wear resistance, and stable conveying operation under continuous-duty conditions.

What is the difference between GLR and GLF scraper conveyor chains?

GLR chains are primarily designed for U-type scraper conveyors and arc conveyor systems, while GLF and 81X chains are commonly used for horizontal scraper conveyor applications.

What industries use GLR scraper conveyor chains?

GLR scraper conveyor chains are widely used in agriculture, grain storage, feed production, seed processing, and industrial bulk material handling systems.

How do I choose the correct GLR scraper conveyor chain size?

The correct chain size depends on conveyor type, pitch requirements, conveying capacity, sprocket compatibility, and material characteristics. Matching the chain with scraper flights and sprockets ensures stable system performance.

Can GLR scraper conveyor chains be customized?

Yes, GLR scraper conveyor chains can be customized based on pitch, dimensions, material, heat treatment, and conveyor system requirements. Drawings or samples can also be used for production reference.
