Project Background and Customer Relationship
This project was completed for one of our long-term international customers who has been cooperating with YT Conveyor for several years. The customer initially purchased custom continuous screw flights from us in 2023 and was satisfied with both the product quality and delivery performance. Based on the successful cooperation and proven reliability of our manufacturing capabilities, the customer placed a repeat order and expanded the procurement scope to include additional bucket elevator components.
The repeat order not only demonstrates the customer’s confidence in our products and services but also reflects our ability to provide a comprehensive range of bulk material handling components. By sourcing multiple products from a single supplier, the customer was able to simplify procurement management, ensure component compatibility, and reduce overall purchasing costs.
Custom Continuous Screw Flights Manufacturing

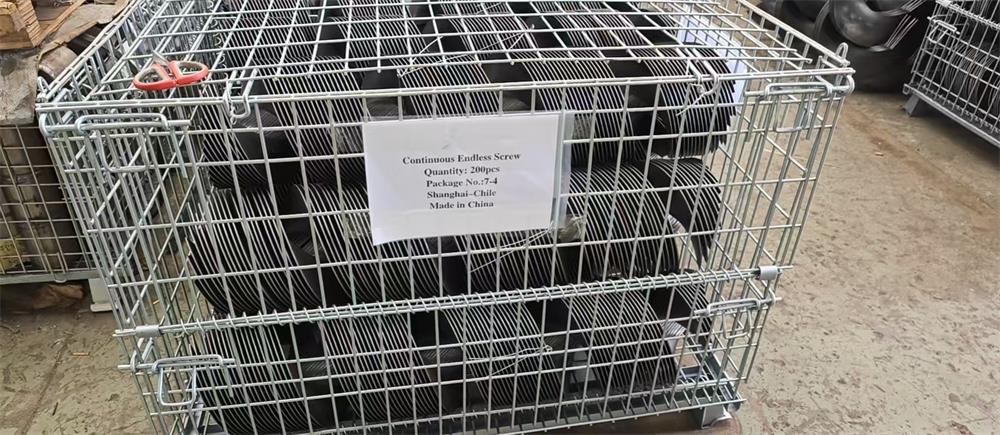

The main product in this order was custom continuous screw flights designed for use in screw conveyor systems. We manufactured a total of 800 pieces according to the customer’s specified dimensions and technical requirements.
Screw Flight Specifications
- Quantity: 800 pieces
- Outer Diameter (OD): 250 mm
- Inner Diameter (ID): 60.3 mm
- Pitch: 250 mm
- Length: 1000 mm
- Thickness: 5 mm
Continuous screw flights are critical components in screw conveyors and play a direct role in conveying efficiency, material flow consistency, and equipment performance. The dimensional accuracy of the flights is particularly important because even small deviations can affect shaft assembly, balancing, and conveying capacity.
During production, strict dimensional control was maintained to ensure consistency across all 800 pieces. The flights were manufactured to provide smooth material movement and reliable performance in bulk handling applications such as grain processing, feed production, fertilizer transportation, and industrial material conveying systems.
Our manufacturing process allows us to produce screw flights in various diameters, pitches, thicknesses, and materials according to customer drawings or application requirements.
Customized Elevator Buckets for Bucket Elevator Systems
In addition to the screw conveyor components, the customer ordered two different models of elevator buckets for use in their bucket elevator equipment.

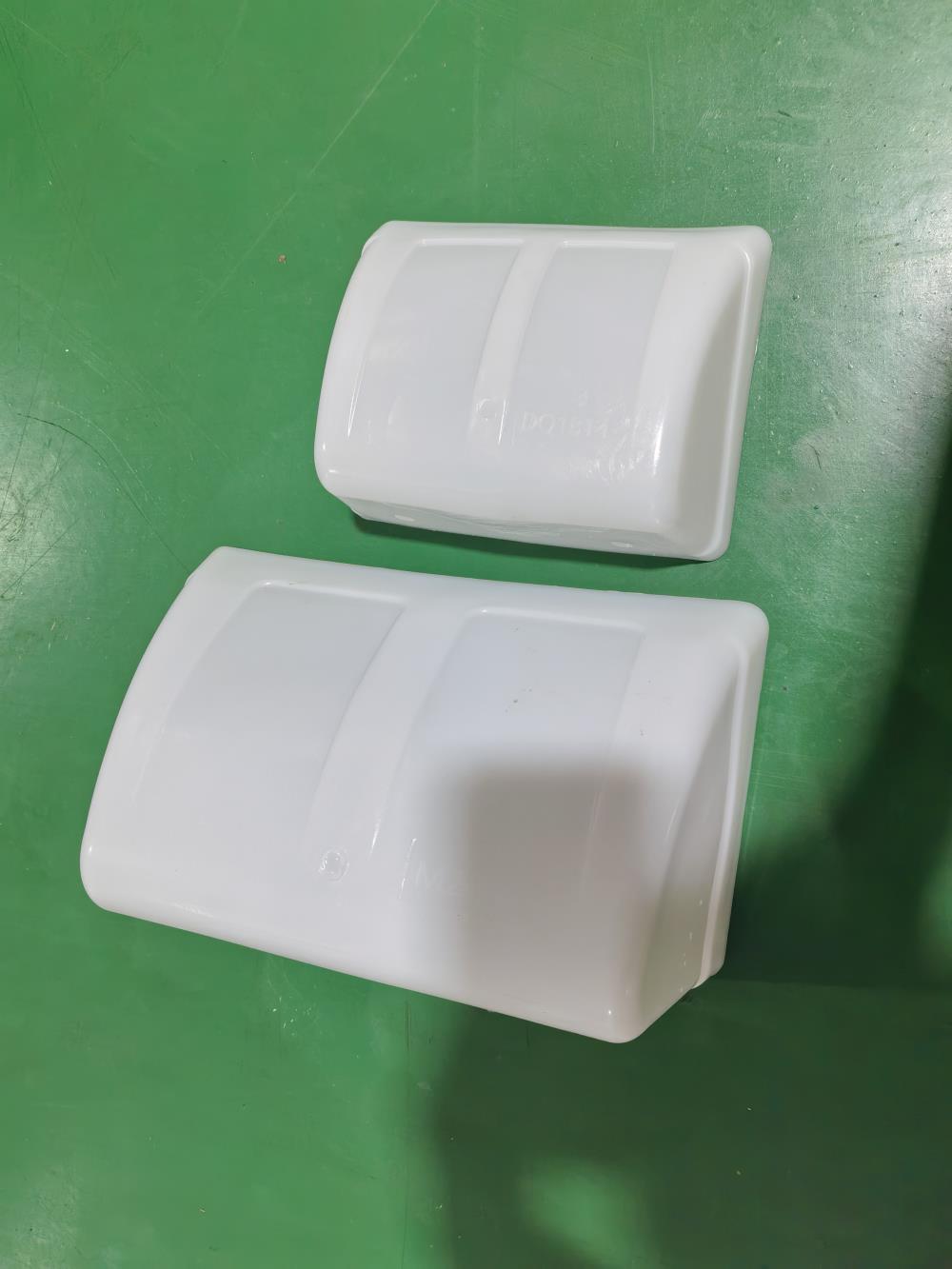

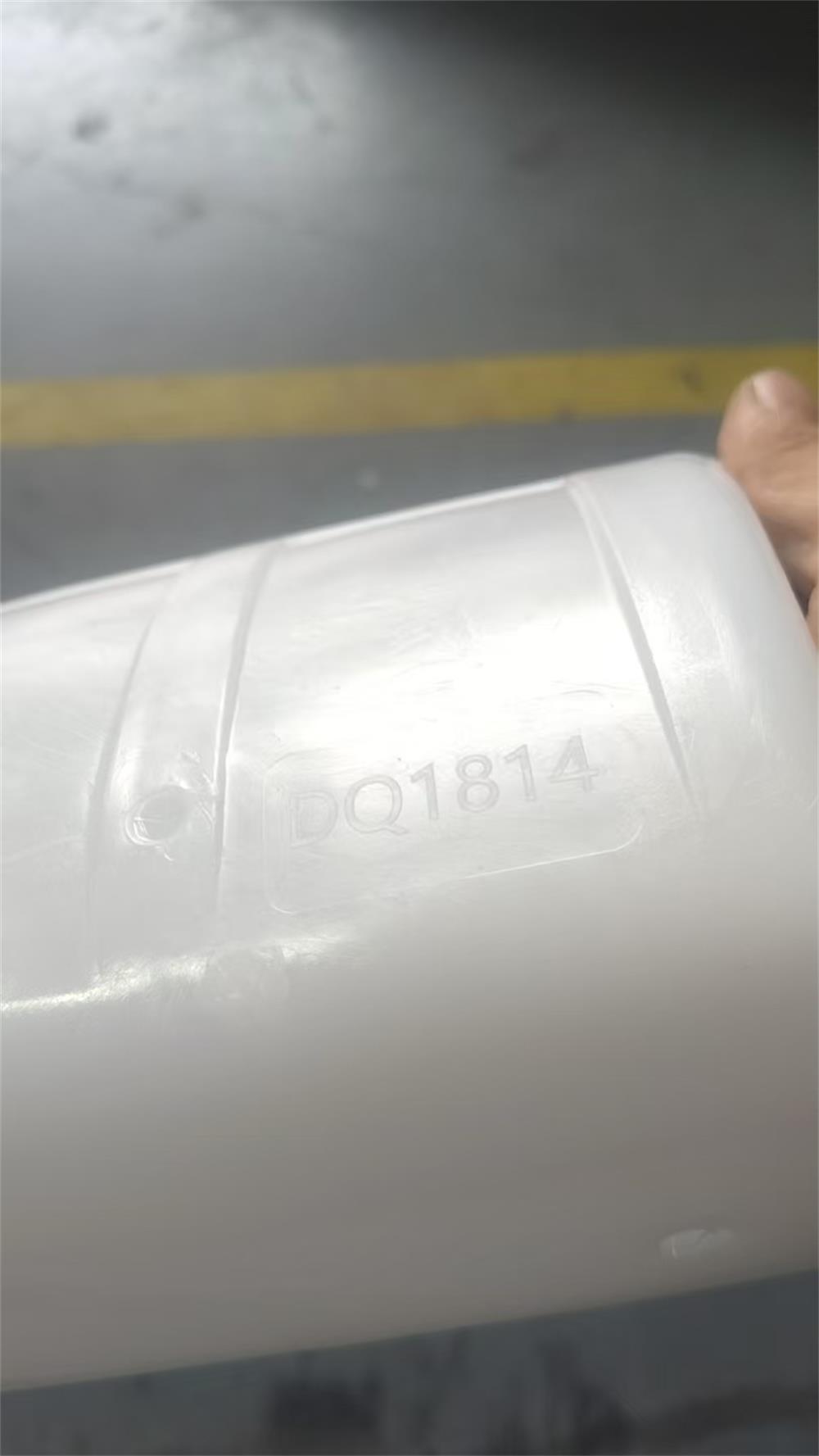

DQ1814 Elevator Buckets
- Quantity: 1600 pieces

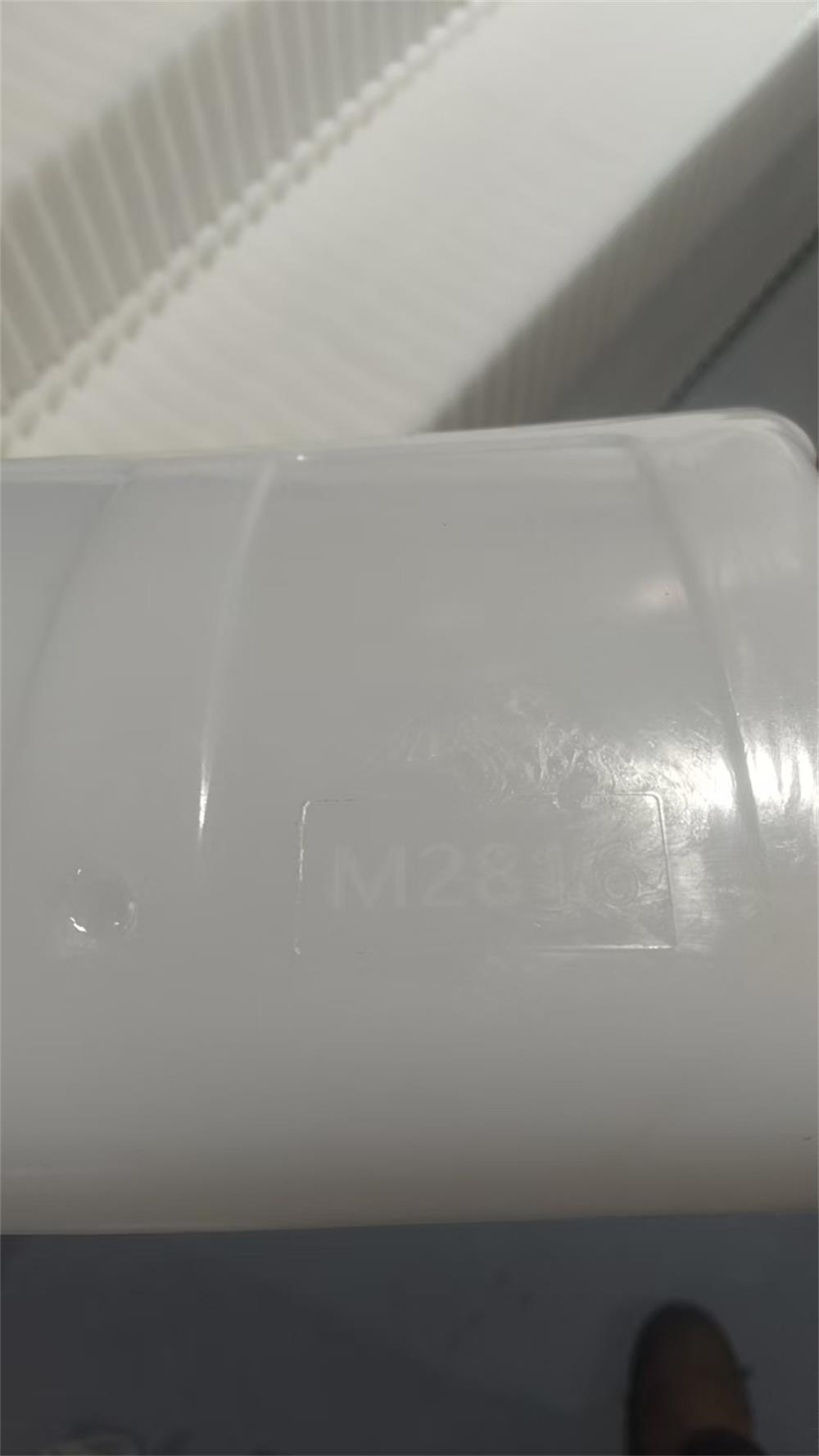

M2816 Elevator Buckets
- Quantity: 1600 pieces
Bucket elevators are widely used for the vertical transportation of bulk materials, and the bucket design directly influences loading efficiency, discharge performance, and overall system productivity.
The DQ1814 and M2816 elevator buckets supplied in this project are suitable for handling a wide range of materials, including:
- Grain
- Seeds
- Animal feed
- Fertilizer
- Pellets
- Powdered materials
- Other bulk products

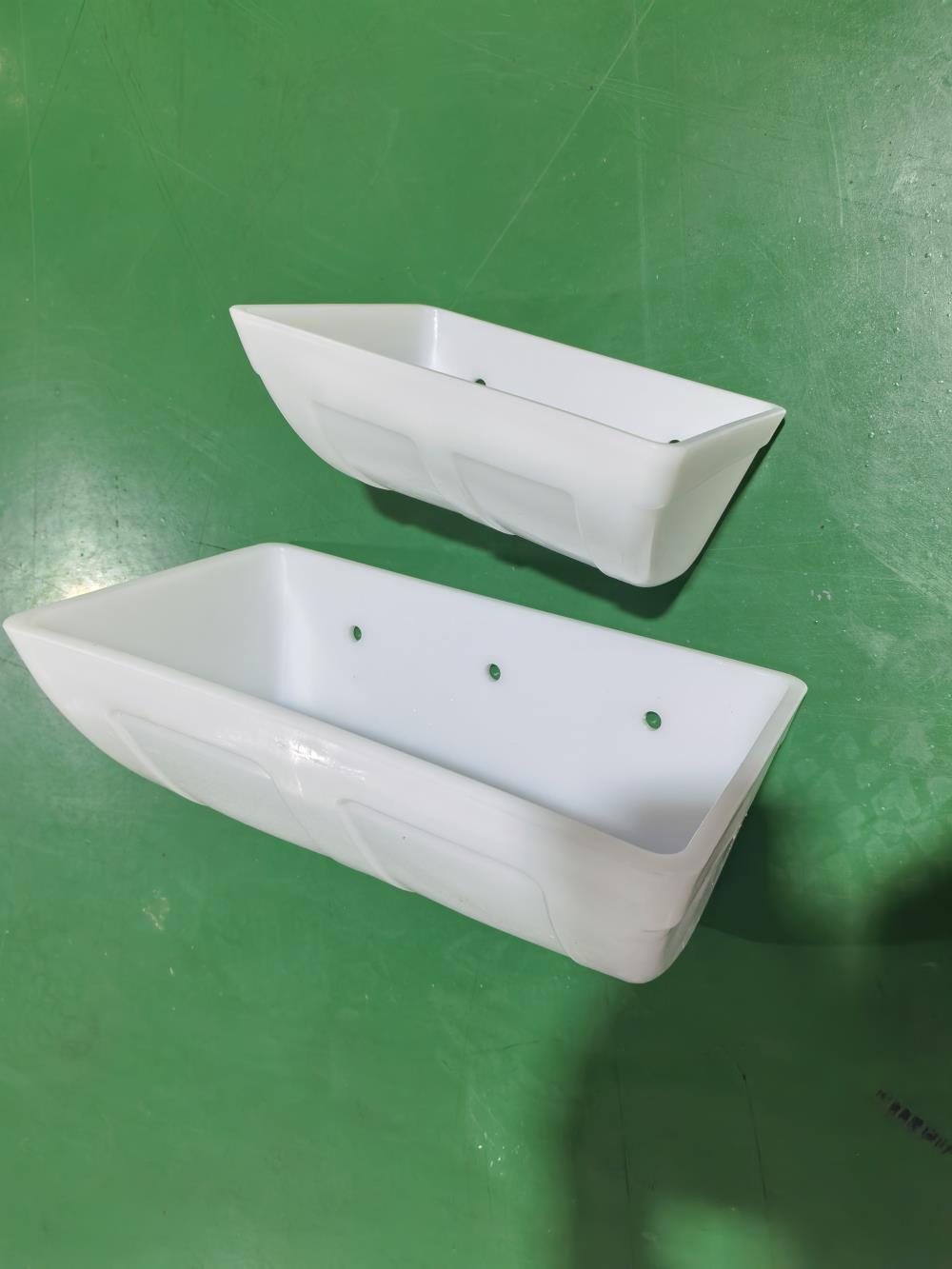

To meet the customer’s installation requirements, we customized the bucket hole configuration and completed non-standard hole punching during production. This modification ensured compatibility with the customer’s existing elevator belts and fastening systems, eliminating the need for additional field modifications during installation.
The ability to customize bucket dimensions, materials, hole patterns, and mounting configurations allows us to provide solutions that fit both new equipment and replacement projects.

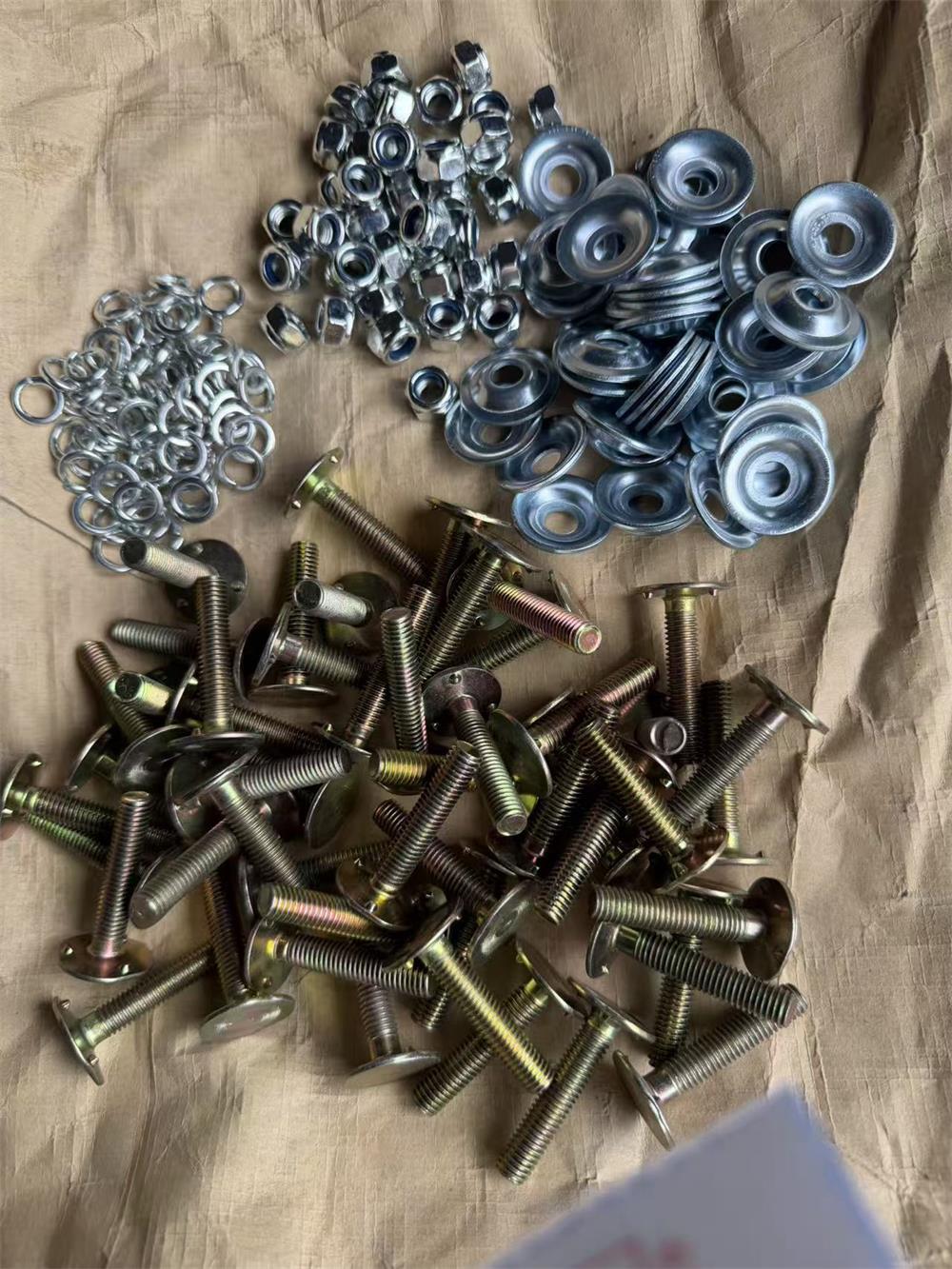

Supply of M8x40 WS Elevator Bucket Bolts
To ensure complete compatibility between the buckets and fastening system, the order also included elevator bucket bolts.
Bolt Specifications
- Type: Elevator Bucket Bolt
- Size: M8 × 40 mm
- Quantity: 8000 sets
Providing matched bucket bolts together with the elevator buckets offers several advantages for customers:
- Simplified procurement process
- Guaranteed compatibility between buckets and fasteners
- Reduced installation time
- Improved assembly efficiency
- Consistent product quality throughout the system
The bolts were prepared and packed together with the corresponding bucket components, allowing the customer to receive a complete installation package ready for assembly upon arrival.
Quality Inspection and Production Control
Before shipment, all products underwent a comprehensive quality inspection process to verify compliance with customer specifications.
The inspection included:
Screw Flight Inspection
- Outer diameter verification
- Inner diameter verification
- Pitch measurement
- Thickness inspection
- Surface condition check
Elevator Bucket Inspection
- Bucket dimensions
- Hole position accuracy
- Hole diameter verification
- Surface quality inspection
- Quantity confirmation
Bolt Inspection
- Thread quality verification
- Dimensional inspection
- Quantity verification
By implementing strict quality control procedures throughout production and final inspection, we ensured that all components met the required standards before packing and shipment.
Packing and Shipment Arrangement
Because the shipment contained multiple types of conveyor and elevator components, special attention was given to packing and transportation protection.
Packing Details
- 4 Iron Cages
- 3 Pallets
Shipment Information
- Gross Weight: 6346 kg
- Total Volume: 9.752 CBM

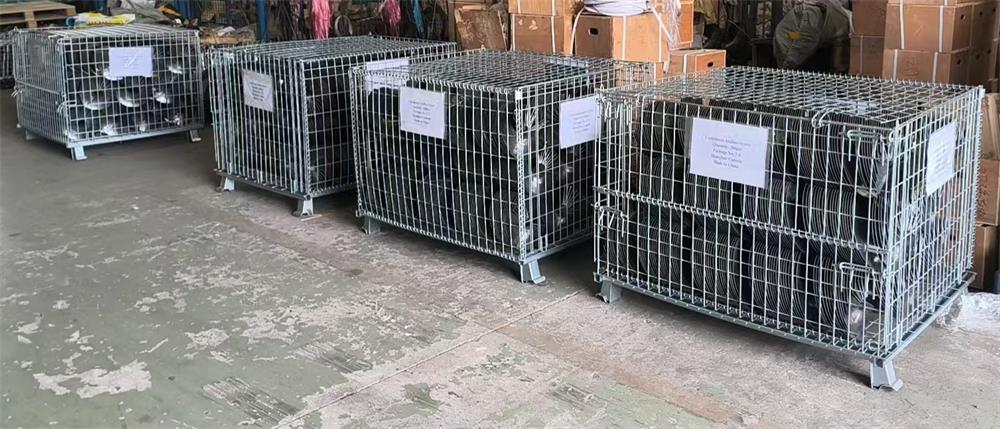

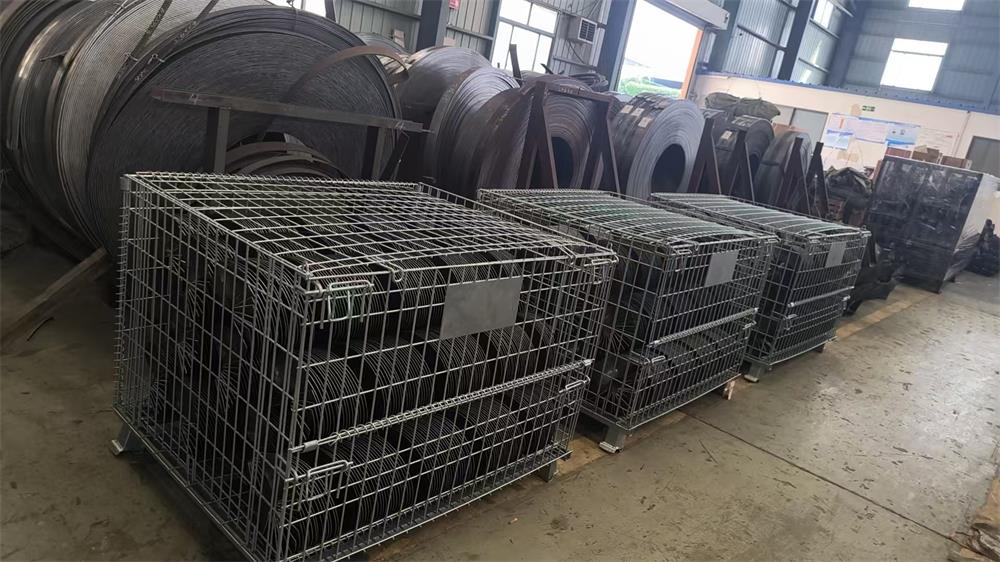

The screw flights, elevator buckets, and bolts were packed separately according to product type and handling requirements. Reinforced iron cages were used to protect the screw flights from deformation during transportation, while pallets provided stable support for the bucket and bolt packages.
This packing arrangement helps minimize the risk of damage during loading, unloading, and long-distance international transportation, ensuring that the products arrive at the customer’s facility in good condition.
One-Stop Manufacturing of Conveyor and Elevator Components
As a manufacturer of bulk material handling components, YT Conveyor produces and customizes a wide range of components for screw conveyor and bucket elevator systems.
Our product range includes:
- Continuous screw flights
- Screw conveyor components
- Elevator buckets
- Elevator bucket bolts
- Conveyor chains
- Sprockets
- Other customized conveyor accessories
We can manufacture products according to customer drawings, samples, technical specifications, or existing equipment requirements. Whether the project involves replacement parts, equipment upgrades, or new installations, our engineering and production teams can provide customized solutions to meet specific application needs.
For complete system matching, explore our screw conveyor components for screw flights and shafts, and our bucket elevator components for elevator buckets, bolts, belts, pulleys, and related accessories.
You can also browse our screw conveyor components and bucket elevator components categories to compare individual component options.
Project Summary
This repeat order demonstrates our capability to manage multi-product manufacturing projects while maintaining consistent quality and delivery performance. The project included 800 custom continuous screw flights, 3200 elevator buckets across two models, and 8000 sets of elevator bucket bolts, all produced according to customer specifications.
From customised screw flight manufacturing and non-standard bucket hole punching to quality inspection, packing, and shipment coordination, every stage of the project was completed according to the customer’s requirements.
The successful completion of this order further strengthens our long-term cooperation with the customer and highlights YT Conveyor’s ability to provide reliable, customized conveyor and bucket elevator components for bulk material handling industries worldwide.
