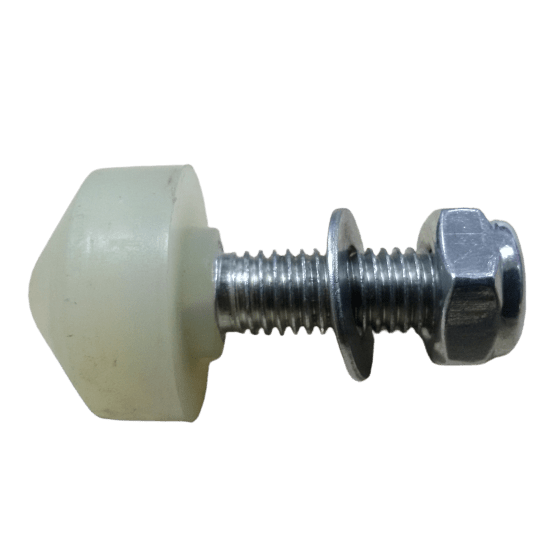

PU polyurethane bolt used for fixing wear liner in conveyor chute

PU Polyurethane Bolt for Wear Liners and Chute Installation

PU polyurethane bolts are designed for installing PU sheets and wear liners in material handling systems.
They provide strong fixing performance while protecting surfaces from wear and impact.

Designed for PU sheet and liner installation
Provides secure fixing under impact conditions
Helps reduce wear on contact surfaces
Suitable for chute, hopper, and conveyor systems
Available in multiple standard sizes
Durable and long service life

Additional information

Size:	M8x25, M8x30, M10x35, M10x40

Not sure which model fits your system? We’ll help you choose the right one.
Send us your requirements — we’ll recommend the right solution within 24 hours.

PU Polyurethane Bolt for Liner Installation

PU polyurethane bolts are specially designed for fixing PU sheets and wear liners in bulk material handling systems.
They are widely used in chutes, hoppers, and grain handling equipment where both strong fastening and wear protection are required.

Key Features

Strong fixing performance for liner installation
Good impact resistance under heavy load conditions
Helps reduce damage to liner surfaces
Suitable for abrasive and high-impact environments
Long service life in continuous operation

Available Sizes

We supply standard sizes:

M8 × 25
M8 × 30
M10 × 35
M10 × 40

Custom sizes are available upon request.

Applications

PU bolts are commonly used in:

PU sheet and liner installation
Grain chute and hopper systems
Port and bulk material handling equipment
Conveyor wear protection systems

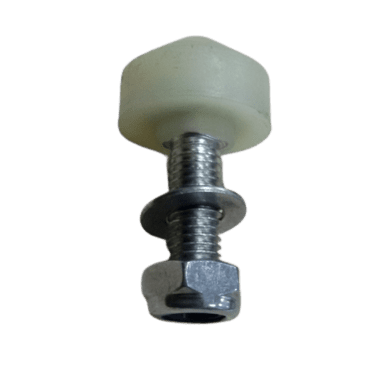

Technical Drawing and Picture

Specification

Model	D	D	L	L1	Package (Pcs per carton)
M8X25	M8	26	35	25	1000
M8X30	M8	26	40	30	1000
M10X35	M10	28	50	35	800
M10X40	M10	28	55	40	800

PU bolts are recommended to be used together with PU sheets or UHMW liners for better performance and longer service life.

PU Liner Installation Solution

PU polyurethane sheets are typically installed using matching PU bolts to ensure secure fixing and long-term performance.
This combination is widely used in material handling systems where wear resistance and impact protection are critical.

Recommended Installation Method

Use PU polyurethane bolts to fix the liner securely onto steel structures
Ensure proper spacing between bolts for stable installation
Suitable for chutes, hoppers, and conveyor transfer points

Advantages of Using PU Sheet + PU Bolt Together

Provides strong and stable installation under impact conditions
Reduces wear and damage to both liner and supporting structure
Improves overall service life of the system
Minimizes maintenance and replacement frequency

For complete liner solutions, PU sheets and matching PU bolts are recommended to be used together.
