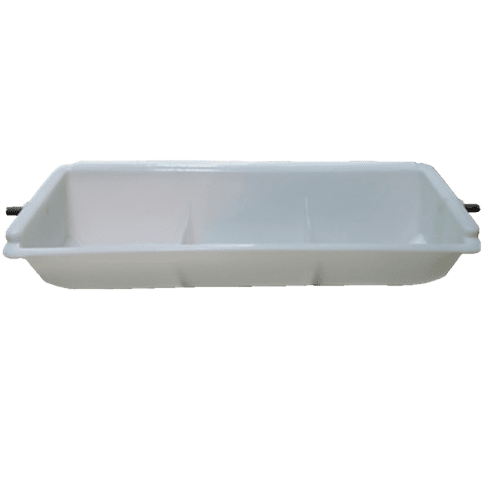

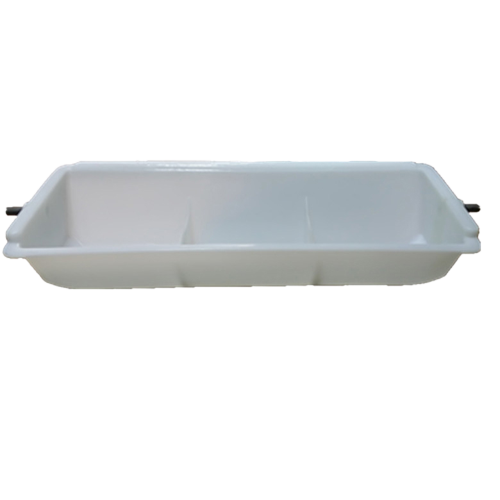

DL Type Z Elevator Bucket Overview

DL type elevator bucket is specifically designed for chain-type Z bucket elevator systems. Unlike conventional agricultural buckets, DL buckets are mainly used in food processing and industrial applications requiring gentle and flexible conveying.

Applications

DL type buckets are widely used in:

• Sugar processing
• Grain and cereal handling
• Seed conveying
• Wine and food industries
• Detergent and washing powder handling
• Other light industrial materials

Working Principle

DL buckets are used in Z-type conveyor systems, which combine vertical and horizontal conveying. Materials are transported step-by-step through a chain-driven bucket system, ensuring stable and continuous movement.

Performance Advantage

DL buckets are designed for low-damage conveying, making them suitable for sensitive materials that require careful handling.

• Gentle material handling
• Reduced product damage
• Stable conveying performance
• Suitable for mixed conveying directions

Specification

👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.

Customization & Compatibility

Z bucket elevator systems are often designed differently by various manufacturers, so bucket dimensions and mounting structures may vary.

DL buckets are typically customized to match specific equipment designs. New molds can be developed based on drawings or samples when required.

Standard Models

Some commonly used models include:

• DL3319

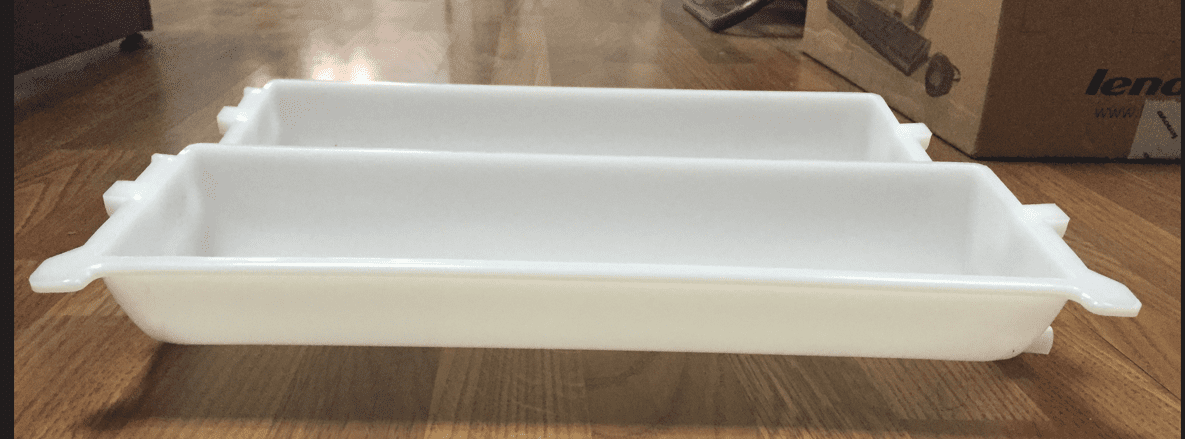

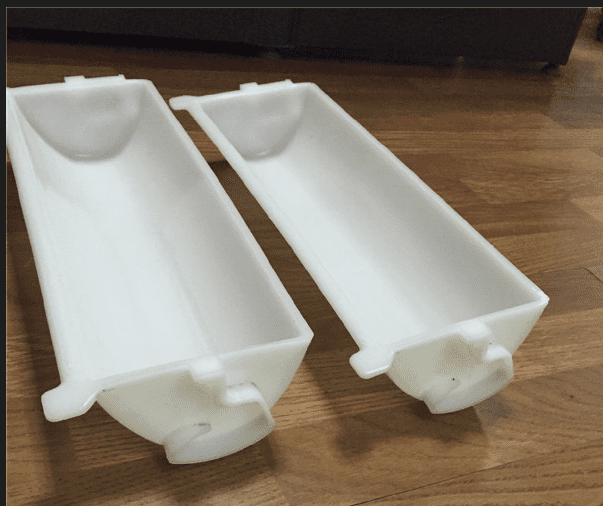

• DL4013

These sizes are relatively more widely used, but final selection depends on system design.

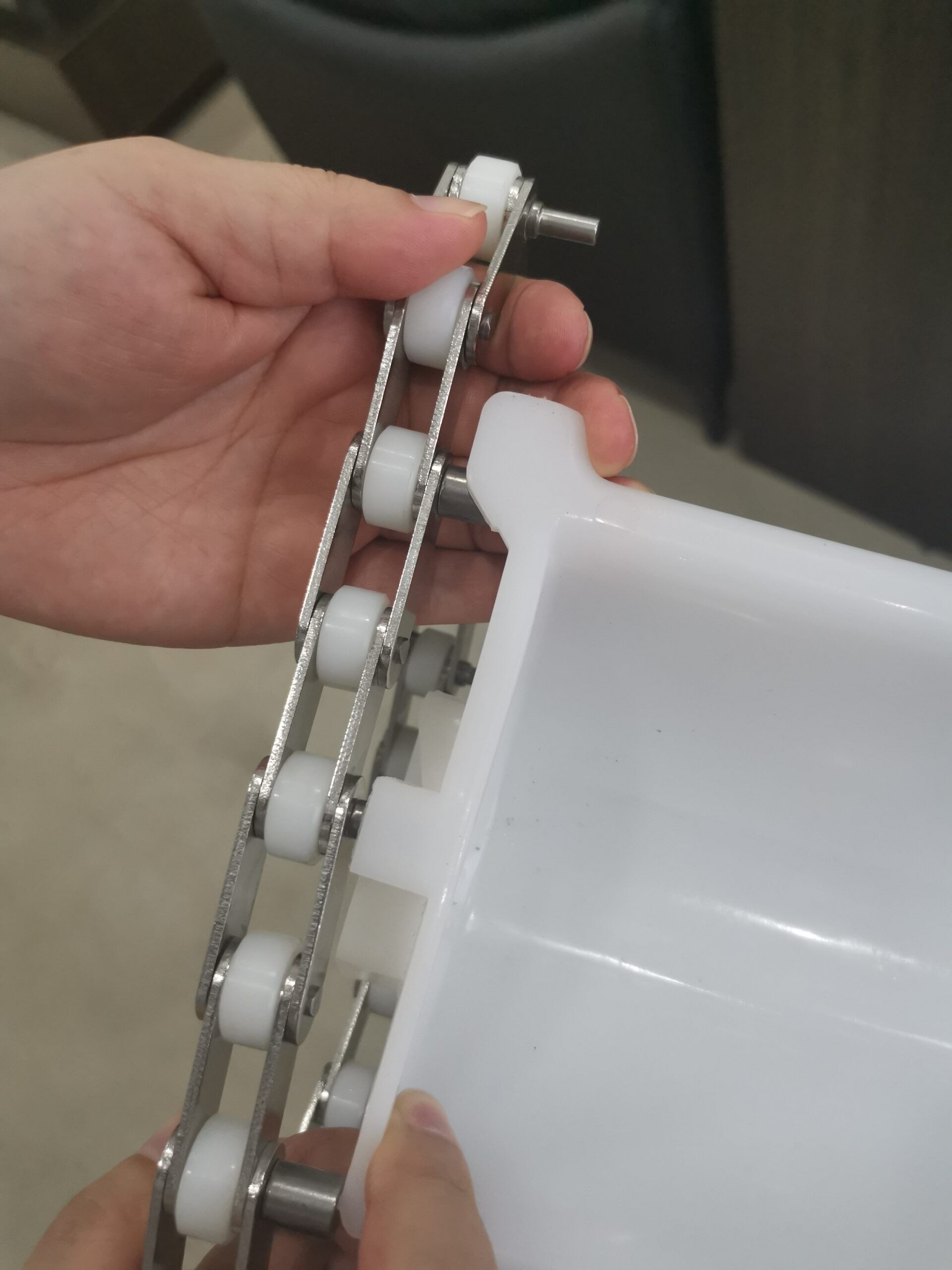

Chain Matching

Matching conveyor chains are also available to ensure proper installation and reliable operation of the bucket system.

Engineering Considerations

For optimal performance, the following factors should be considered:

• Conveyor design (Z type structure)
• Material characteristics
• Bucket size and spacing
• Chain system compatibility

FAQ – DL Z Elevator Bucket

What is a DL Z elevator bucket?

A DL Z elevator bucket is a bucket designed for Z type bucket elevators used in continuous conveying systems. It is commonly mounted on chains and allows smooth horizontal-to-vertical material transport with minimal product damage.

What is a Z bucket elevator bucket used for?

DL Z elevator buckets are used in Z type bucket elevators for conveying grain, seeds, snacks, pet food, fertilizer and other bulk materials that require gentle handling.

What materials are available for DL Z elevator buckets?

DL Z elevator buckets are commonly manufactured in HDPE, Nylon and food-grade plastic materials. Different materials are selected based on wear resistance, impact strength and application requirements.

What industries use DL Z elevator buckets?

DL Z elevator buckets are widely used in food processing, grain handling, agriculture, seed conveying, packaging systems and bulk material transfer lines.

What is the advantage of a DL Z elevator bucket?

The main advantage of a DL Z elevator bucket is gentle conveying. It minimizes material breakage and supports continuous transport through horizontal and vertical conveying sections.

How does a DL Z elevator bucket work?

DL Z elevator buckets are mounted on conveyor chains and move continuously through a Z type conveyor path. Materials remain inside the bucket during transfer, reducing spillage and product damage.

What is the difference between a DL Z elevator bucket and a standard elevator bucket?

Standard elevator buckets are usually designed for centrifugal or gravity discharge systems. DL Z elevator buckets are designed for continuous conveying systems where buckets remain level during transport.

Can DL Z elevator buckets be customized?

Yes. DL Z elevator buckets can be customized based on bucket size, mounting structure, material type, hole spacing and chain conveyor requirements.

Looking for buckets for your Z elevator system?

Send us your drawings or specifications, and we’ll help you design the most suitable solution.
