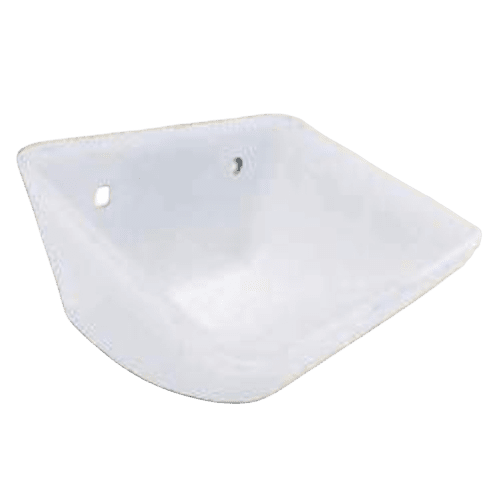

Euro Elevator Bucket Overview

Euro elevator bucket is a shallow-type bucket mainly used in the European market. It is not part of the commonly used bucket series but may be required for specific applications.

Design Characteristics

This bucket features a shallow bottom design, which is typically used in certain agricultural conveying systems. Compared with deep bottom buckets, it is suitable for lighter material handling conditions.

Applications

Euro buckets may be used in:

  • Agricultural conveying systems
  • Grain handling
  • Light bulk material applications

Actual usage depends on the system design and regional standards.

Technical Drawing

euro bucket drawing

Specifications

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Total   Level
(X-Y)		 Usable   Level
(Z-Y)+10%		 Water   Level
(Z-Y)
15 X 8 380 220 142 36 90 4 10.5 6.3 4.9 4.66
14 X 7 370 188 132 35 90 4 9 5 3.85 3.66
13 X 8 340 220 138 38 120 3 10.5 5.6 4.7 4.47
12 X 7 315 188 123 35 100 3 9 4.25 3.33 3.17
11 X 6 290 174 110 36 80 3 10.5 3 2.44 2.32
9 X 6 240 172 110 38 120 2 10.5 2.5 2 1.9
8 X 5 203 147 111 32 100 2 9 1.96 1.5 1.4
7 X 5 188 144 92 30 100 2 8.5 1.2 1.01 0.96
6 X 4 159 113 77 23 88 2 9 0.67 0.57 0.54
5 X 4 140 115 80 23 70 2 8.5 0.63 0.55 0.52
4 X 3 107 91 62 17 50 2 8.5 0.3 0.22 0.21

Holes could be customized.

Market Position

This type of bucket is mainly seen in European markets and is not widely used in other regions. It is generally provided only when required by specific equipment or project specifications.

Customization & Availability

Since this is not a standard product in our main range, it is usually supplied based on project requirements. Customization may be required to match different systems.

If your system requires this type of bucket, feel free to share your specifications for evaluation.

FAQ – Euro Elevator Bucket

What is a Euro elevator bucket?

A Euro elevator bucket is a shallow-profile bucket commonly used in European-style bucket elevator systems for handling agricultural and light bulk materials.

What materials can be handled with Euro elevator buckets?

Euro elevator buckets are suitable for conveying grains, seeds, feed, powders, and other light to medium-density bulk materials.

What are the main features of a Euro elevator bucket?

Euro elevator buckets typically feature a shallow bottom design, smooth discharge performance, and efficient material handling in continuous conveying systems.

What materials are available for Euro elevator buckets?

Euro elevator buckets can be manufactured from materials such as HDPE, nylon, PU, or other wear-resistant plastics depending on the application.

How do I select the correct Euro elevator bucket size?

Bucket size selection depends on elevator speed, material type, required capacity, bucket spacing, and the dimensions of the bucket elevator system.

Are Euro elevator buckets suitable for agricultural applications?

Yes, Euro elevator buckets are widely used in agricultural industries for grain handling, seed transport, feed processing, and similar conveying applications.

Can Euro elevator buckets be customized?

Yes, bucket dimensions, mounting hole positions, materials, and thickness can often be customized to match specific equipment requirements.

Why choose Euro elevator buckets for conveying systems?

Euro elevator buckets offer reliable performance, efficient material discharge, lightweight construction, and compatibility with various bucket elevator configurations.
