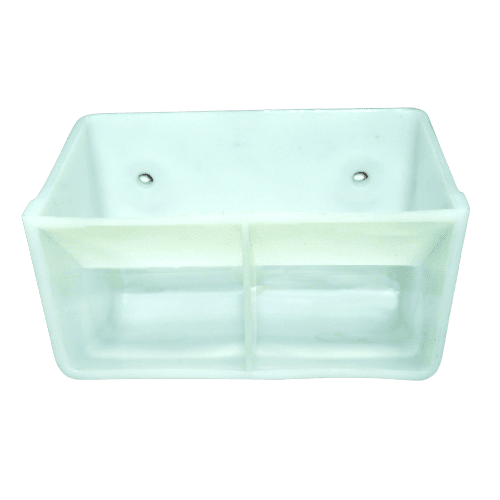

DG Type Combined Elevator Bucket Overview

DG type elevator bucket is a combined bucket design that integrates bottomless buckets with bottom buckets. It is developed to improve conveying capacity and adapt to higher elevator speeds in agricultural material handling systems.

Design Concept

By combining bottomless and bottom bucket structures, DG buckets achieve a balance between material intake and discharge performance. This design increases the effective loading coefficient and improves overall system efficiency.

Performance Advantage

DG type buckets allow more material to be loaded and discharged within each cycle, significantly improving conveying efficiency and production capacity.

  • Higher material intake
  • Increased discharge volume
  • Improved loading coefficient
  • Suitable for high-speed operation
  • Enhanced overall system performance

Working Principle

The combined structure enables continuous material flow, where bottomless sections allow efficient filling, while bottom sections support stable discharge. This makes DG buckets suitable for systems requiring both high speed and high throughput.

Applications

DG type elevator buckets are widely used in:

  • Grain conveying systems
  • Agricultural bulk material handling
  • High-output elevator systems
  • Applications requiring increased production efficiency

Technical Drawing

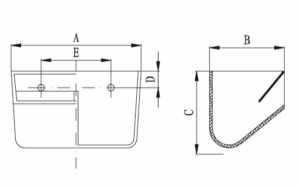

dg bottom and bottomless combined bucket drawing

Specifications

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Water Level
(Z-Y)
DG1107 110 77 86 25 72 2 7 0.45
DG1307 134 77 86 25 72 2 7 0.56
DG1309 135 96 92 30 80 2 7 0.75
DG1812 185 120 120 40 120 2 9 2.00

Fitting holes and hole diameter can be customized.

Comparison with DW Type

Compared with DW bottomless bucket systems:

  • DW type – maximizes capacity through minimal spacing
  • DG type – improves both loading and discharge efficiency with combined structure

DG buckets are more suitable for high-speed systems requiring balanced performance.

Engineering Considerations

For optimal performance, the following factors should be considered:

  • Elevator speed
  • Bucket arrangement
  • Material characteristics
  • System configuration

Looking to improve both speed and capacity in your system? Send us your requirements, and we’ll help you select the best bucket configuration.

FAQ – DG Combined Elevator Bucket

What is a DG combined elevator bucket?

A DG combined elevator bucket is a bucket design that integrates bottomless buckets with bottom buckets to improve conveying efficiency. It is developed for high-speed bucket elevator systems requiring both high loading capacity and stable discharge performance.

How does a DG combined elevator bucket work?

DG buckets use a combined structure where bottomless sections improve material intake while bottom buckets provide stable discharge. This design creates continuous material flow and improves conveying performance at higher operating speeds.

What is the advantage of a DG combined bucket design?

The main advantage of a DG combined bucket is improved balance between loading and discharge efficiency. It increases the loading coefficient, enhances throughput and supports higher production capacity in bucket elevator systems.

What materials are available for DG elevator buckets?

DG elevator buckets are commonly available in HDPE, Nylon and PU materials. HDPE provides lightweight and economical performance, Nylon offers higher wear resistance, and PU improves impact resistance and durability.

What industries use DG combined elevator buckets?

DG combined buckets are widely used in grain conveying systems, agricultural bulk material handling, feed processing and other high-output conveying applications.

What is the difference between DG and DW bottomless buckets?

DW bottomless buckets mainly increase conveying capacity through minimal bucket spacing. DG buckets combine bottomless and bottom bucket structures to improve both material intake and discharge efficiency, making them more suitable for balanced high-speed conveying systems.

Are DG buckets suitable for high-speed bucket elevators?

Yes. DG buckets are specifically designed for high-speed elevator systems where increased conveying capacity and stable material discharge are required.
