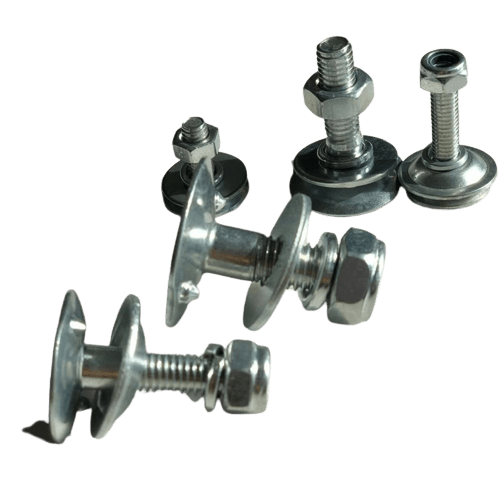

Product Overview

Ordinary elevator bolts are widely used in bucket elevator systems to fasten buckets securely onto conveyor belts. Their large, flat head helps distribute load evenly across the belt surface, reducing wear and extending service life.

This type of bolt is commonly used with plastic elevator buckets, where load conditions are moderate and extreme anti-rotation performance is not required.

Compared with fanged elevator bolts, ordinary bolts offer a more economical solution, making them ideal for cost-sensitive projects and standard conveying applications.

For heavy-duty systems, ordinary bolts may loosen over time — fanged bolts are recommended.

Technical Advantages

Ordinary elevator bolts are manufactured with 6g thread precision, ensuring accurate fit and reliable assembly. The mechanical strength is above grade 4.8, meeting the requirements of standard conveying applications. Surface treatment options include oxidation or galvanization for basic corrosion protection.

These bolts are mainly used for low-speed conveying of low-density materials, typically in combination with plastic elevator buckets. As a cost-effective solution, they are suitable for standard operating conditions with moderate load and minimal vibration.

For applications requiring higher strength, improved anti-rotation performance, or greater stability, fanged elevator bolt sets are recommended.

Applications

  • Grain elevators
  • Feed processing systems
  • Agricultural conveying equipment
  • General bulk material handling
  • Standard industrial conveyor systems

When Ordinary Elevator Bolts Are Suitable

Ordinary elevator bolts are recommended for:

  • Plastic elevator bucket systems
  • Light to medium load conveying
  • Low-speed operations
  • Applications with limited vibration
  • Cost-sensitive projects

Technical Drawing with Picture

bucket elevator bolt elevator bucket drawing

Ordinary Elevator Bolt Specification Table

Model d Diameter(mm)
D		 Length(mm)
L		 Package
(pcs per carton )
M6 X 16 M6 18 16 2000
M6 X 22 M6 18 22 2000
M6 X 30 M6 18 30 2000
M8 X 25 M8 22 25 1000
M8 X 30 M8 22 30 1000
M8 X 38 M8 22 38 1000
M10 X 35 M10 26 35 600
M10 X 40 M10 26 40 600

Elevator Bolt Accessories

hexagon nut
Hexagon Nut
nyloc nut
Nyloc nut





square nut
Square Nut
  • Strength: Level 5
  • Thread precision: 6H
  • Surface treatment: Passivation of Zinc Plating

spring washer

  • Material: 65Mn
  • Surface treatment: Oxidation treatment

large flat washer

  • Hardness: 100HV
  • Surface treatment: Galvanized

domed washer

  • Hardness: 100HV
  • Surface treatment: Galvanized

Elevator Bolt Set Options:

  • Option F: Square nut
  • Option Y: Domed washer + Spring washer + Hexagon Nut
  • Option S: Larger flat washer + Spring washer + Nyloc nut
  • Option P: Larger flat washer + Spring washer + Hexagon nut
  • Option WS: Domed washer + Spring washer + Nyloc nut

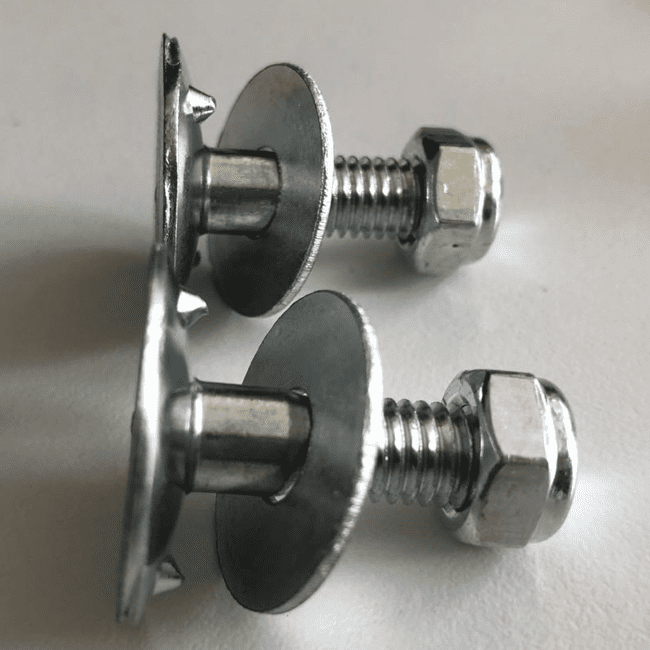

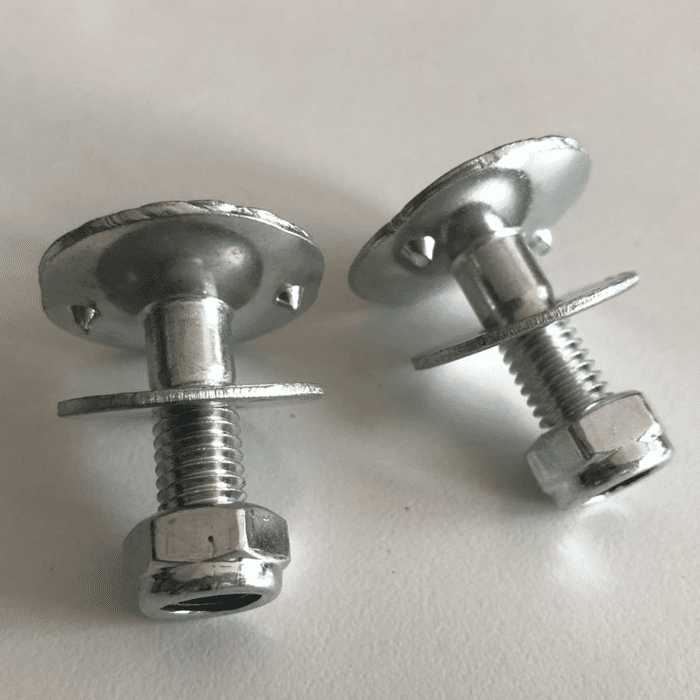

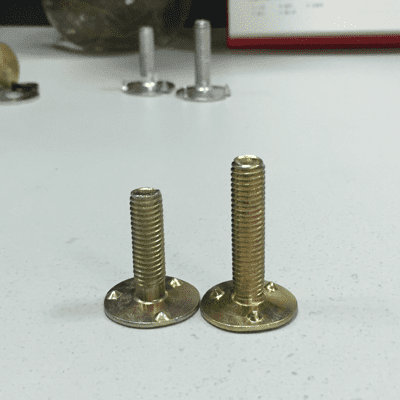

Ordinary vs Fanged Elevator Bolts (Performance Comparison)

Feature Ordinary Elevator Bolt Fanged Elevator Bolt
Head Structure Smooth underside With sharp fangs under the head
Anti-Rotation Limited Excellent
Installation Requires holding bolt head Easy, self-locking
Fixing Stability Moderate Strong locking effect
Vibration Resistance Suitable for light-duty use Suitable for heavy-duty use
Maintenance May require re-tightening Low maintenance
Application Plastic buckets, standard systems High-load, high-vibration systems
Cost More economical Slightly higher

Matching Components

We can supply a complete solution including:

  • Elevator buckets
  • Washers
  • Nuts
  • Conveyor components

Ensures compatibility and simplifies sourcing.

Looking for Higher Stability and Anti-Rotation Performance?

Fanged elevator bolts are also available for demanding applications.

Contact us for selection support.
