M Type Elevator Bucket Overview

M type elevator bucket is a medium-depth bucket positioned between DS (deep bottom) and DQ (shallow bottom) buckets. It is designed to provide flexible conveying performance under different operating conditions, especially in systems with varying elevator speeds.

In terms of structure, the M bucket represents an intermediate design based on the C dimension, balancing capacity and discharge behavior.

Why Design M Type Elevator Bucket

Bucket elevators operate at different linear speeds depending on system design. DS buckets rely mainly on gravity discharge, which requires relatively lower running speeds. In contrast, DQ buckets use centrifugal discharge, which requires higher speeds to generate sufficient centrifugal force.

M type elevator buckets are designed to bridge this gap, allowing effective operation across both low-speed and high-speed systems.

Product Features

The M type bucket combines the advantages of both deep and shallow bucket designs, making it a versatile option for various conveying conditions.

  • Medium-depth design for balanced performance
  • Compatible with a wide range of elevator speeds
  • Flexible discharge mechanism
  • Suitable for different material characteristics
  • Helps improve overall conveying efficiency

Material Options

Available materials include:

  • HDPE – lightweight, cost-effective, suitable for general applications
  • Nylon – higher strength and wear resistance
  • PU (Polyurethane) – excellent impact resistance and longer service life

Different materials can be selected based on working conditions such as abrasion, temperature, and impact requirements.

Applications

M type elevator buckets are suitable for:

  • Grain conveying systems
  • Feed processing plants
  • Bulk material handling systems
  • Agricultural and industrial applications

Use advice

  • Suitable for high-speed centrifugal discharge and light bulk material lifting
  • Below the table, the size is for HDPE material. Because of the differences in the material shrinkage; Nylon and PU elevator bucket size is approximately more than 2%;
  • Recommend (Z-Y)+10% capacity data as your engineering design use.

Technical Drawing

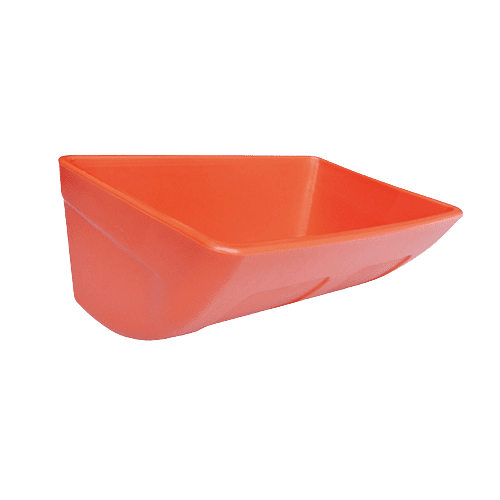

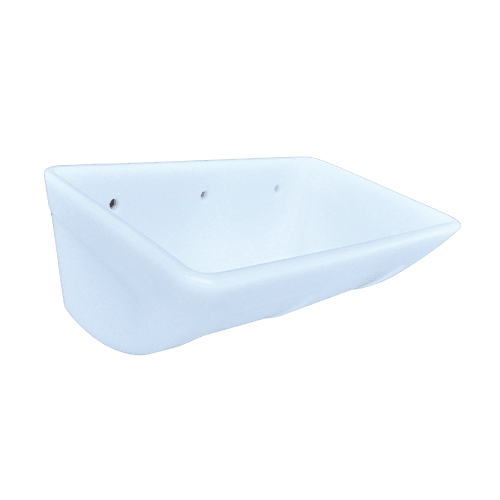

m middle deep bottom bucket drawing

Specifications

Model Bucket Dimension(mm) Mounting   Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From   Top
D		 Hole   Centres
E		 No.   of
Holes		 Hole
diameter		 Total   Level
(X-Y)		 Usable   Level
(Z-Y)+10%		 Water   Level
(Z-Y)
M1009 105 96 60 20 50 2 7 0.36 0.28 0.25
M1312 138 125 85 25 70 2 7 0.80 0.55 0.50
M1814 189 153 113 30 100 2 9 1.80 1.54 1.40
M2014 208 155 110 30 100 2 9 1.95 1.78 1.62
M2316 248 173 127 35 120 2 9 3.00 1.53 2.30
M2816 286 173 127 35 80 3 9 3.50 2.97 2.70
M3017 297 179 118 35 90 3 9 3.80 3.40 3.10
M3021 315 230 170 45 100 3 11 6.50 5.50 5.00
M3317 325 175 115 35 80 4 9 3.90 3.69 3.35
M3321 340 220 170 45 120 3 11 7.10 5.94 5.40
M3721 384 230 170 45 90 4 11 8.10 6.82 6.20
M4521 458 230 170 45 90 5 11 9.80 8.25 7.50
M5121 519 230 170 45 100 5 11 10.76 9.46 8.60

Installation holes’ distance and diameter can be customised.



👉 Not sure which bucket fits your system?

Tell us your application or required size — we will recommend the right model within 24 hours.



Performance Advantage

Compared with deep bottom buckets, M type elevator buckets can operate across a wider range of linear speeds, providing greater flexibility in system design. This can help improve overall production efficiency and output in suitable applications.

Engineering Considerations

The performance of a bucket elevator depends on multiple factors, including:

  • Elevator running speed
  • Bucket spacing
  • Head pulley diameter
  • Material characteristics

Different system designs may require different bucket types, and selection should be based on comprehensive evaluation.

M Type vs Other Elevator Buckets

Compared with other bucket types, we offer a complete range of elevator buckets for different capacity requirements and system standards. We offer both inch size and metric size bucket types to match different system standards:

  • D type – deep bottom bucket in inch size, recommended for high-capacity conveying and heavy-duty applications
  • S type – shallow bottom bucket in inch size, suitable for light bulk materials and stable, gentle conveying
  • DS type – deep bottom bucket in metric size, suitable for high-capacity conveying in metric system installations
  • M type – medium-capacity bucket in metric size, ideal for balanced conveying where both capacity and discharge control are required
  • DQ type – shallow bottom bucket in metric size, suitable for lower capacity and more controlled discharge applications

You may also be interested in

This range allows customers to select the most suitable bucket type based on capacity, material characteristics, and system standards.

FAQ – M Type Elevator Bucket

What is an M type elevator bucket?

An M type elevator bucket is a medium-depth bucket designed for bucket elevator systems. It is positioned between DS and DQ bucket types and offers balanced conveying performance for both low-speed and high-speed elevator applications.

What materials are available for M type elevator buckets?

M type elevator buckets are commonly manufactured in HDPE, Nylon and PU materials. HDPE is lightweight and economical, Nylon provides higher wear resistance, and PU offers excellent impact resistance and longer service life.

What industries use M type elevator buckets?

M type elevator buckets are widely used in grain conveying systems, feed mills, agricultural processing, fertilizer plants and bulk material handling industries.

What is the advantage of an M type elevator bucket?

The main advantage of an M type elevator bucket is its balanced performance between capacity and discharge control. It can operate effectively across a wider range of elevator speeds compared with deep or shallow bucket designs.

What is the difference between M type and DS elevator buckets?

M type buckets feature a medium-depth profile designed for flexible speed operation, while DS buckets have a deeper bottom design mainly suited for gravity discharge and lower-speed conveying systems.

Are M type elevator buckets suitable for high-speed bucket elevators?

Yes. M type elevator buckets are suitable for both low-speed and high-speed bucket elevator systems, making them ideal for applications requiring flexible operating conditions.

How do I choose the correct M type elevator bucket size?

Bucket selection depends on belt width, bucket spacing, pulley diameter, material density and required conveying capacity. Metric A, B and C dimensions are commonly used for model selection.

Not sure which bucket type fits your system?

Send us your requirements, and we’ll help you select the most suitable solution.
