A bucket elevator is a vertical conveying system used to lift powders, granules, grains, pellets, and other bulk materials from a lower level to a higher level.
Compared with many horizontal conveying systems, bucket elevators require relatively little floor space and can achieve high lifting heights. They are widely used in grain, feed, seed, food processing, cement, mining, and other bulk material handling applications.
Main Characteristics of a Bucket Elevator
A bucket elevator normally consists of elevator buckets mounted on a belt or chain, together with drive and return pulleys or sprockets, tensioning devices, fasteners, and a protective casing.
Its main advantages include:
- Compact vertical conveying structure
- High lifting height
- Continuous material transportation
- Large conveying capacity
- Flexible bucket, belt, and chain configurations
- Suitable for different bulk materials
Correct component selection is important because overload, improper belt tension, unsuitable bucket spacing, or mismatched pulleys can reduce service life and operating reliability.
Main Bucket Elevator Components
Elevator Buckets
Elevator buckets receive, lift, and discharge the material.
Bucket selection depends on:
- Material characteristics
- Required capacity
- Bucket shape
- Discharge method
- Operating temperature
- Belt or chain type
- Existing elevator dimensions
Plastic buckets are widely used for grain, feed, seed, and food applications, while steel buckets are commonly selected for heavy-duty, abrasive, or higher-temperature conditions.
You can browse our complete range of elevator buckets, including D, CC, DS, DQ, DM, DL, King Tiger, and steel bucket series.
Elevator Belt Selection
The elevator belt is the traction element connecting the head and boot sections of a belt-type bucket elevator.
The correct belt should be selected according to:
- Lifting height
- Required tensile strength
- Pulley diameter
- Bucket size and spacing
- Material load
- Operating temperature
- Working environment
A practical belt length estimate can be made from the center distance between the head and tail pulleys together with the pulley diameter, but final belt length should be confirmed according to the actual equipment layout and tensioning allowance.
For available belt options, see our elevator belts, including PVC and rubber bucket elevator belts.
Elevator Belt Width
Belt width should be matched with the elevator bucket width and mounting arrangement.
The belt must be wide enough to securely support the bucket while maintaining sufficient clearance at both sides.
Actual belt width should be confirmed according to the bucket model, bolt arrangement, and elevator casing dimensions rather than relying on one fixed formula for all systems.
Elevator Bolts and Fasteners
Elevator bolts are used to securely fasten buckets to the elevator belt.
Bolt selection depends on:
- Bucket material
- Bucket wall thickness
- Belt thickness
- Washer type
- Nut type
- Hole diameter
- Required clamping force
The bolt length should be sufficient to pass through the bucket, belt, washers, and nut while leaving enough thread for secure tightening.

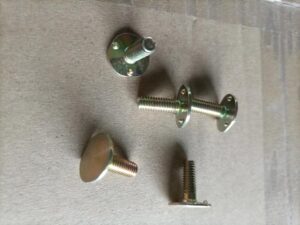

Our elevator bolts range includes fanged elevator bolts and ordinary elevator bolts for different installation requirements.
Belt Fasteners
The two ends of an elevator belt must be joined securely.
The correct belt fastener should be selected according to belt thickness, tensile strength, operating load, and pulley diameter.
For belt joining and maintenance, view our conveyor belt fasteners for belt splicing and repair applications.
Head and Tail Pulleys
The head pulley drives the elevator belt, while the tail pulley guides the belt and works together with the tensioning system.
Pulley diameter and surface design have an important effect on:
- Belt bending stress
- Traction
- Belt tracking
- Slippage
- Overall belt life
Rubber lagging can be applied to the drive pulley to increase friction and reduce belt slippage.
For custom pulley applications, see our head drum pulley for bucket elevators, available with different dimensions and lagging options.
How to Select Bucket Elevator Components
When replacing or selecting bucket elevator parts, the following information is useful:
- Bucket model or dimensions
- Belt width and thickness
- Lifting height
- Head and tail pulley diameter
- Bucket spacing
- Mounting hole diameter and spacing
- Material being conveyed
- Required capacity
- Operating temperature
- Existing drawings or photos
For replacement projects, providing the original model number, drawing, sample, or clear dimensional photos can make component matching much easier.
Under below is the common faults in Chinese:
Complete Bucket Elevator Components
YT Conveyor manufactures a complete range of bucket elevator components for grain, feed, seed, food, mining, and industrial bulk material handling systems.
Our main product range includes:
- Plastic and steel elevator buckets
- PVC and rubber elevator belts
- Elevator bolts
- Belt fasteners
- Head and tail pulleys
- Related customized components
Components can be manufactured or customized according to drawings, samples, existing model numbers, and application requirements.
Conclusion
Reliable bucket elevator operation depends on correct matching between the bucket, belt, bolts, fasteners, pulleys, and operating conditions.
Selecting components according to material characteristics, lifting height, capacity, and equipment dimensions can help improve conveying performance, reduce maintenance, and extend service life.
