We are pleased to share a recent project completed for a new client from Canada, who purchased a batch of SS304 continuous and segment screw flights for their material conveying system. This collaboration demonstrates our capability to deliver precision-engineered stainless-steel flights with reliable quality and on-time performance.
Project Overview
After receiving the client’s detailed technical drawings and dimensional requirements, our engineering team reviewed the specifications and provided professional recommendations to optimize both manufacturability and performance.
Following the client’s confirmation, we proceeded with production and completed the entire order within 20 days, ensuring quality control at every stage. Following the client’s confirmation, we completed production within 20 days with dimensional and surface inspections carried out throughout the process. The finished flights were securely packed and shipped by LCL sea freight to Canada. For related custom flight and shaft solutions, explore our screw conveyor components.
Product Specifications

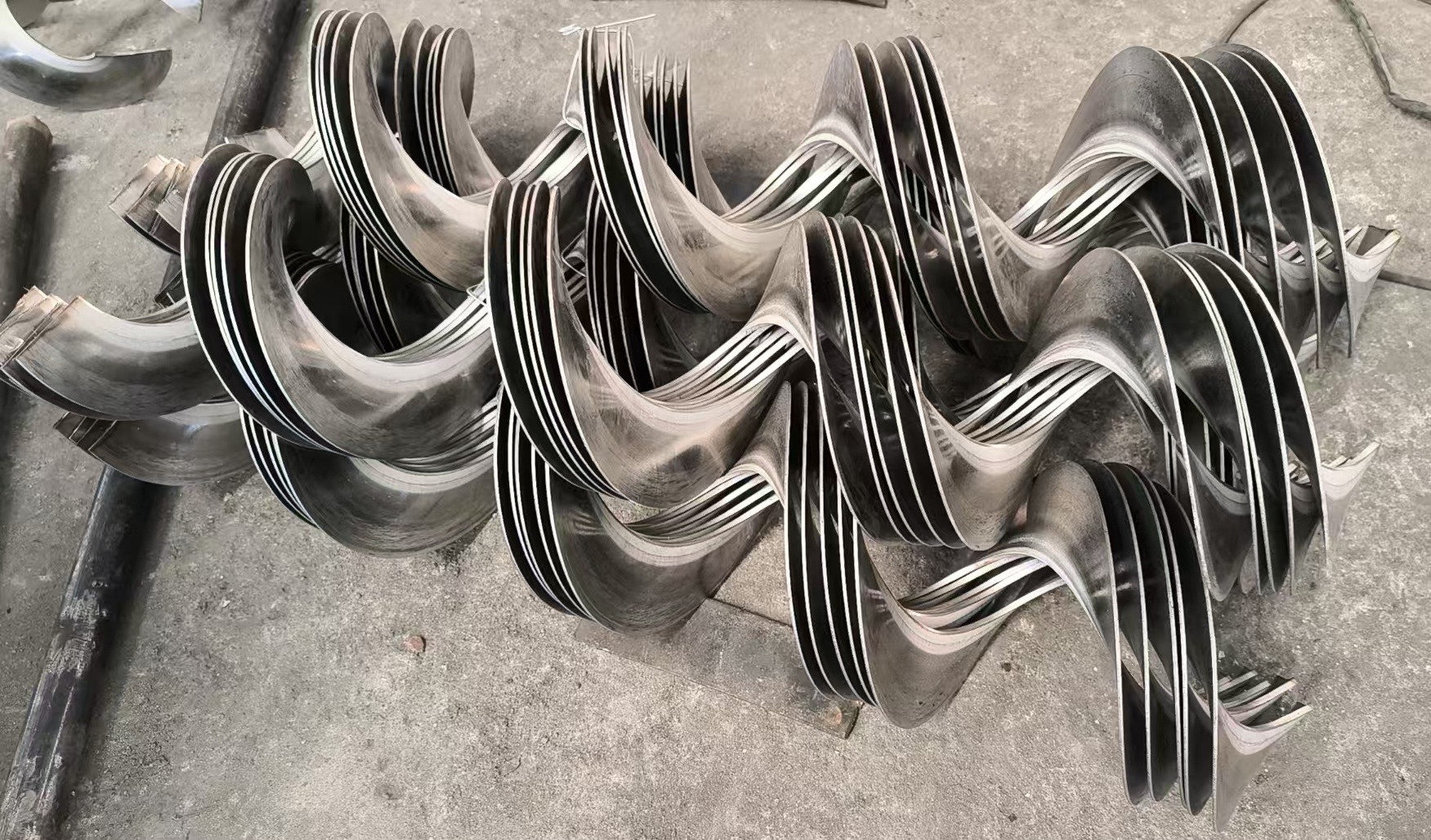

Continuous Screw Flights
- Quantity: 100 pcs
- Material: Stainless Steel SS304
- Dimensions: OD 230 × ID 73 × Pitch 230 × Thickness 5 × Length 1000 mm
- Type: Right-hand
- Features: Smooth and uniform pitch for stable material flow, high corrosion resistance, and excellent surface finish suitable for long-term operation.
For standard continuous flight options and custom dimensions, see our continuous screw conveyor flight product page.
Segment Screw Flights
- Quantity: 90 pcs
- Material: Stainless Steel SS304
- Dimensions: OD 230 × ID 73 × Pitch 230 × Thickness 5 mm
- Type: Right-hand
- Features: Precisely formed segments with accurate pitch alignment, ideal for modular assembly and easy maintenance.
You can also browse our screw conveyor components category to compare continuous, sectional and tapered screw flights together with matching screw shafts.
Manufacturing & Delivery

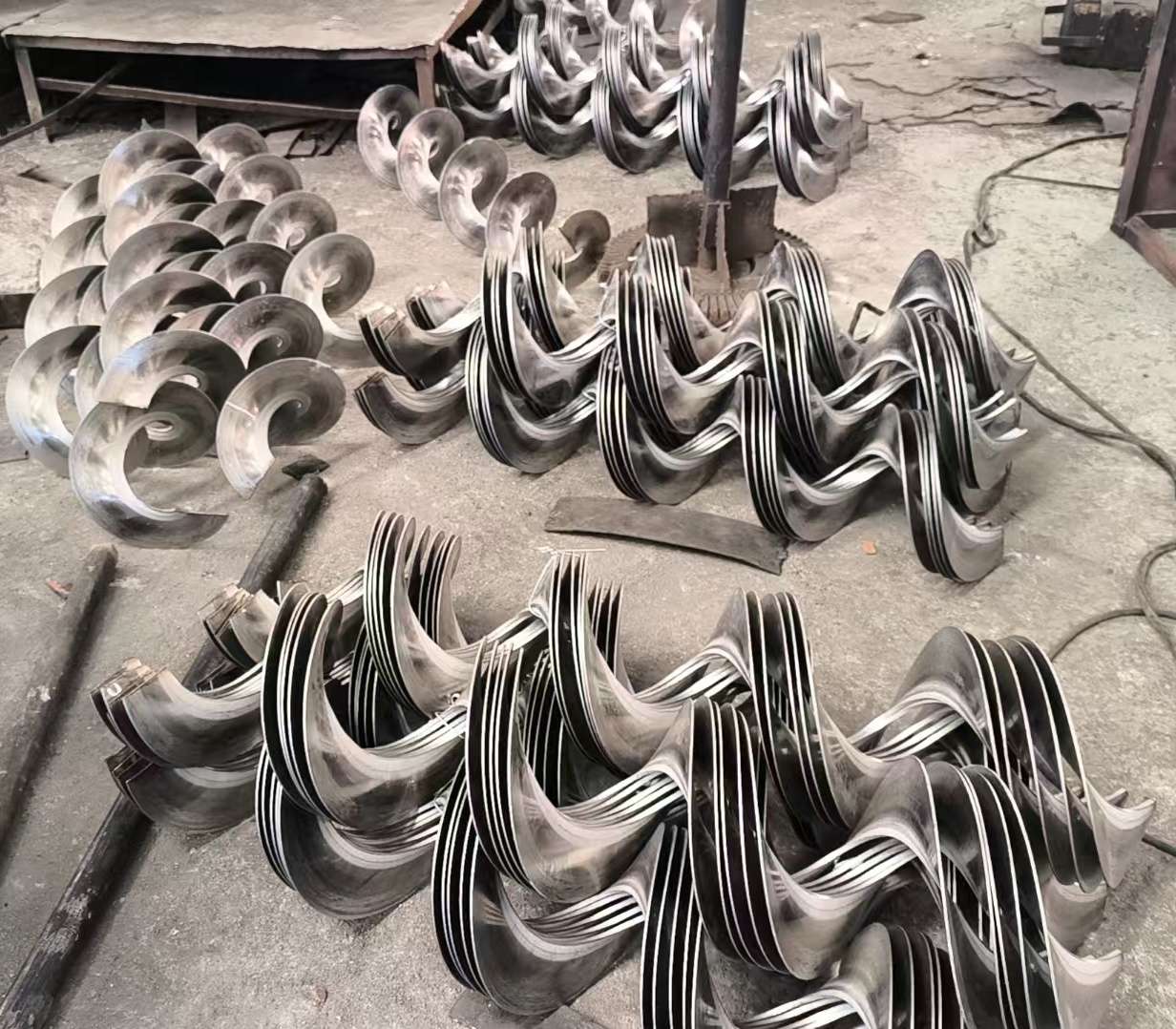

Throughout the production process, our team implemented strict dimensional inspection and surface finish control to ensure the accuracy and consistency of each flight.

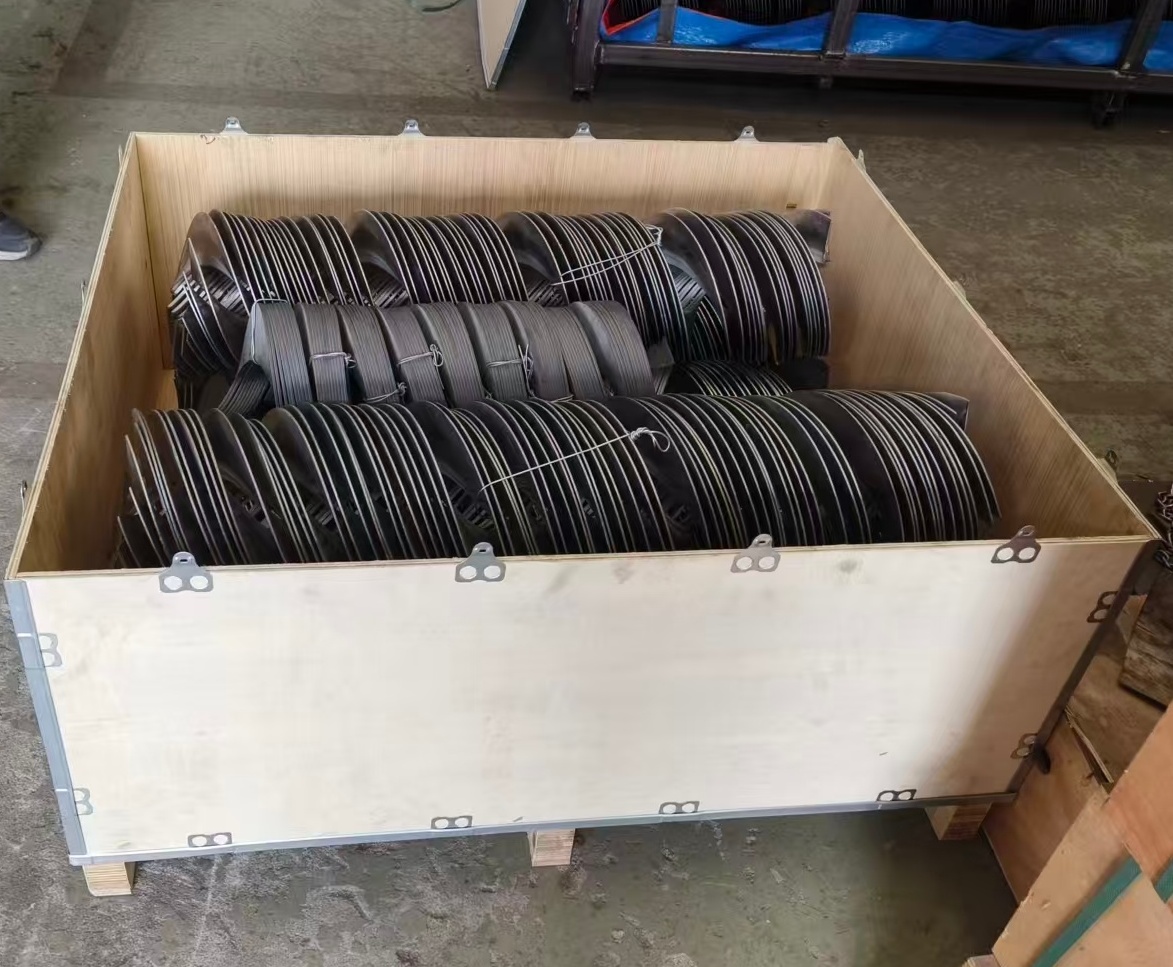

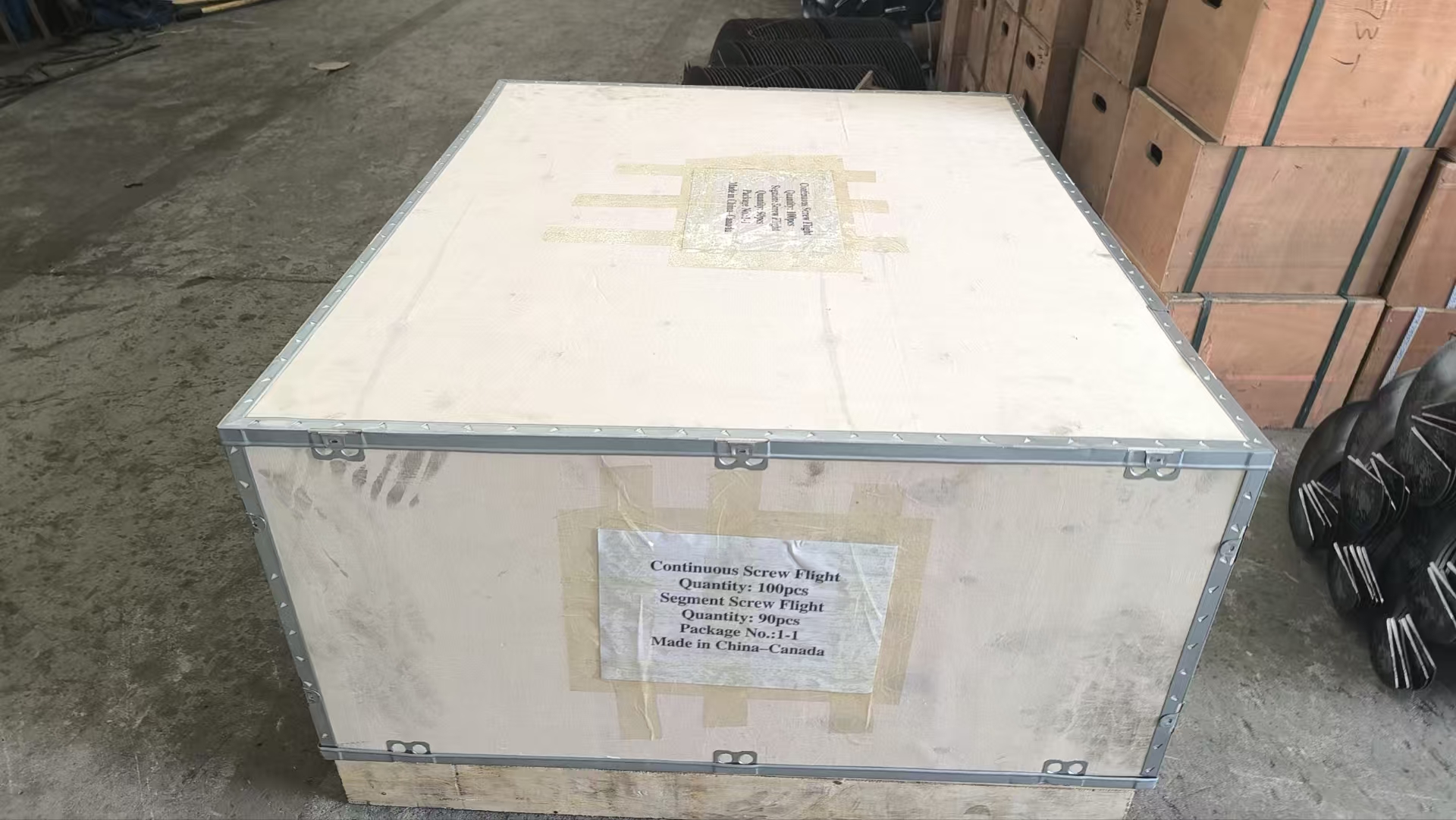

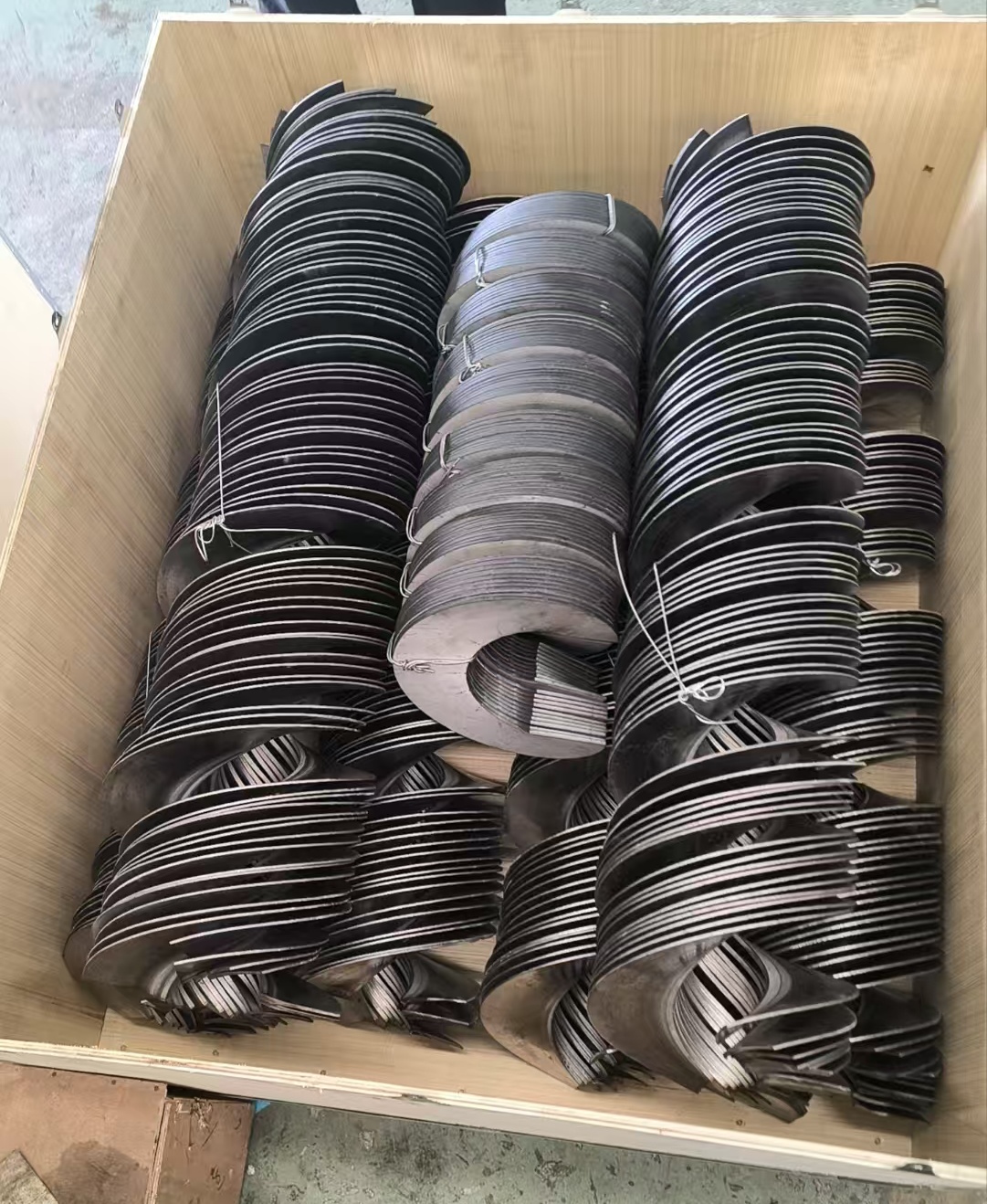

All flights were carefully packed with moisture protection and anti-scratch layers before shipment. The products were then loaded and dispatched via sea freight consolidation (LCL) to optimize logistics cost and delivery time.
Applications of Screw Flights
Screw flights are widely used in various industries such as:
- Bulk material conveying systems
- Agriculture and feed processing
- Mining and mineral handling
- Wastewater treatment equipment
- Food and chemical processing lines
With our experience in custom screw flight manufacturing and stainless steel fabrication, we can manufacture continuous, sectional and shaft-mounted screw flight configurations according to customer drawings, material requirements and conveying conditions.
Partner with Us
This Canadian project demonstrates our capability to manufacture stainless steel screw flights to confirmed dimensions, material specifications and rotation requirements for different bulk material conveying systems.
If you need customized screw flights or matching shafts, send us your drawing or confirm the OD, ID, pitch, thickness, material and rotation direction. Our team can review the requirements before quotation and production.
