Product Overview

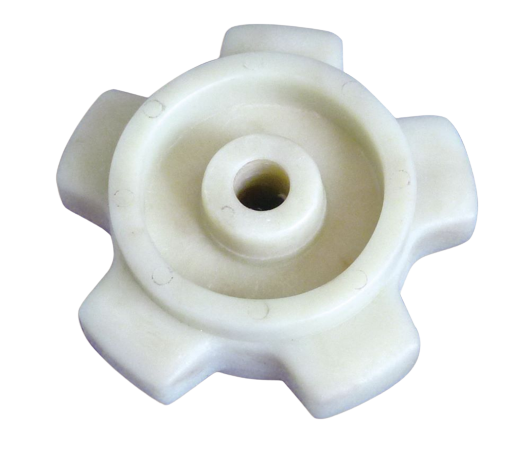

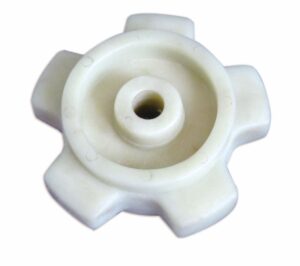

The nylon gear wheel is used in chain conveyor systems for guiding and supporting the movement of chains.
It plays an important role in reducing friction, stabilizing chain movement, and ensuring smooth conveying, especially in long-distance conveyor systems.
👉 Related chain:
GLF & 81X Scraper Conveyor Chain for Horizontal Conveyors
GLR Scraper Conveyor Chain for U-Type Conveyor
👉 Related sprocket: Sprocket for Conveyor Roller Chain
Material and Structure
This nylon gear wheel is made from reinforced nylon material, which provides better rigidity and strength compared with standard nylon.
The structure can be:

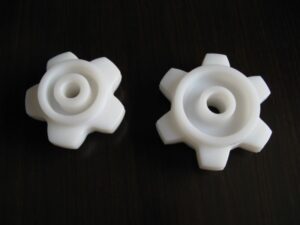

- With teeth (gear type)
- Without teeth (guide wheel type)
Both types are designed for different functions in conveyor systems.

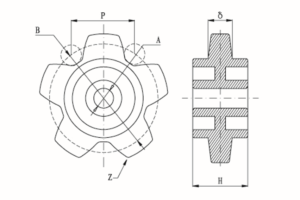

Technical Drawing with Pictures
Specification of Nylon Gear Wheel (Toothed Type)
| Model | A(mm) | B(mm) | δ(mm) | H (mm) | Pitch (mm) | Gear number |
|---|---|---|---|---|---|---|
| TG38.1×7 | φ18 | φ87.8 | 12.5 | 25 | 38.1 | 7 |
| TG38.1×8 | φ26 | φ99.3 | 20 | 50 | 38.1 | 8 |
| TG63.5×5 | φ20 | φ108 | 17 | 45 | 63.5 | 5 |
| TG66.5×4 | φ20 | φ94.05 | 25 | 57 | 66.5 | 4 |
| TG66.5×5 | φ20-25 | φ100 | 25 | 57 | 66.5 | 5 |
| TG66.5×6 | φ26 | φ125 | 25 | 57 | 66.5 | 6 |
| TG68x4 | φ20 | φ96.17 | 25 | 45 | 68 | 4 |
| TG68x5 | φ25 | φ115.6 | 24 | 47 | 68 | 5 |
| TG76.2×5 | φ25 | φ129.6 | 22.5 | 50 | 76.2 | 5 |
| TG100x5 | φ25 | φ170.0 | 34.2 | 70 | 100 | 5 |
| TG100x5B | φ25 | φ170.0 | 24.5 | 59 | 100 | 5 |
The common specification of Nylon Chain Gear Wheel:
TG66.5X5（used for pitch 66.5mm chain）
TG100X5 （used for pitch100mm chain）

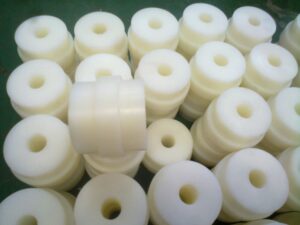

Specification of Nylon Guide Wheel (Non-Toothed Type)
| Wheel | D | D1 | d | B | b |
|---|---|---|---|---|---|
| φ75xφ20×70 | 75 | 65 | 20 | 70 | 25 |
| φ90xφ40.8×80 | 90 | 80 | 40.8 | 80 | 32 |
| φ110xφ40.5×79 | 110 | 94 | 40.5 | 90 | 36 |
The toothed type is mainly used for driving or engaging the chain, while the non-toothed type is used for guiding and supporting the chain.
Application
Widely used in:
- Scraper conveyor systems
- Chain conveyor systems
- Grain and feed conveying equipment
- Bulk material handling systems

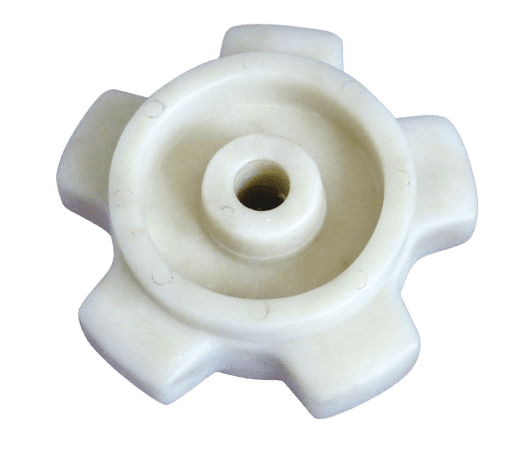

Nylon Gear Wheel in the Chain Conveyor
Performance Advantages
Our nylon gear wheel offers:
- Excellent anti-abrasion performance
- Strong anti-shock and anti-impact ability
- Smooth chain guiding performance
- Reduced noise compared with metal components
- Lightweight design for easier installation
These features help improve system efficiency and extend service life.
Function in Conveyor System
The nylon gear wheel is mainly used for:
- Guiding the chain during operation
- Supporting the upper running chain
- Reducing friction and wear
- Ensuring smooth chain movement
It is especially suitable for long-distance conveying systems where chain stability is important.
Customization
We can provide customized nylon gear wheels based on your requirements:
- Size and dimensions
- Bore diameter
- With or without teeth
- Special material requirements
👉Not sure which type of nylon gear wheel is suitable for your system?
Send us your drawing or working condition, and we will recommend the most suitable option.
FAQ – Nylon Gear Wheel
What is a nylon gear wheel?
A nylon gear wheel is a plastic gear component used in conveyor chain systems to guide, support, or engage chains during operation. It is commonly used as a lightweight and wear-resistant alternative to metal wheels.
What are nylon gear wheels used for?
Nylon gear wheels are used in chain conveyor systems to stabilize chain movement, reduce friction, and support smooth conveying performance. They are especially suitable for long-distance conveyor applications.
What types of nylon gear wheels are available?
Nylon gear wheels are available in toothed and non-toothed designs. Toothed types engage directly with conveyor chains, while non-toothed guide wheels provide chain support and alignment.
What material is used to manufacture nylon gear wheels?
Nylon gear wheels are typically made from reinforced nylon material, which offers improved rigidity, impact resistance, and wear performance compared with standard nylon.
What are the advantages of nylon gear wheels?
Nylon gear wheels provide low noise operation, lightweight construction, excellent abrasion resistance, strong anti-impact performance, and reduced friction compared with metal components.
What industries use nylon gear wheels?
Nylon gear wheels are commonly used in grain handling, feed processing, scraper conveyors, chain conveyor systems, and bulk material handling equipment.
How do I choose the correct nylon gear wheel?
Selecting the correct nylon gear wheel depends on chain pitch, conveyor type, bore diameter, wheel size, and whether a toothed or guide wheel design is required. Matching the wheel to the conveyor chain ensures stable operation.
