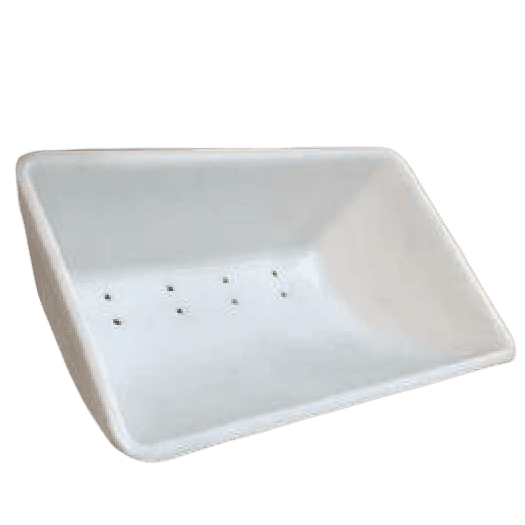

E Bucket Overview

E bucket is a non-standard elevator bucket designed for specific applications. Unlike commonly used bucket types, it is not intended for general use and is typically selected based on particular system requirements.

Design Characteristics

The bucket features a relatively thicker wall and reinforced front edge, which can help improve durability under certain working conditions. However, the design is application-specific rather than universally standardized.

Applications

E bucket may be used in selected applications such as:

  • Grain handling
  • Fertilizer conveying
  • Seed processing
  • Salt and chemical industries

The actual use depends on system design and operating conditions

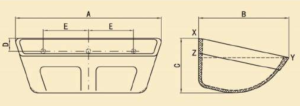

Technical Drawing

e bucket drawing

Specifications

Model Bucket Dimension(mm) Mounting Holes(mm) Capacity(L)
Length
A		 Proj.
B		 Depth
C		 From Top
D		 Hole Centres
E		 No. of
Holes		 Hole
diameter		 Usable Level
(Z-Y)+10%		 Water Level
(Z-Y)
E30 187 145 92 30 100 2 9
E36 237 147 94 30 120 2 9 1.44 1.31
E40 291 175 109 35 90 3 9 2.48 2.25
E50 317 187 124 40 80 4 9 3.47 3.15
E60 341 225 141 40 85 4 9 4.73 4.30

Installation holes could be customized.

Customization & Matching

Since this is not a standard bucket type, it is usually matched to specific equipment. Customization based on drawings or samples is often required.

Position in Product Range

Within our bucket range, E bucket is considered a special-use model rather than a mainstream product, and is typically provided only when required by specific projects.

If you have a specific requirement, feel free to share your drawings or application details for evaluation.

FAQ – E Elevator Bucket

What is an E elevator bucket?

An E elevator bucket is a type of bucket elevator cup designed for vertical conveying systems. It is commonly used for handling agricultural and bulk materials in continuous bucket elevator operations.

What materials can be conveyed with E elevator buckets?

E elevator buckets are suitable for transporting grains, feed, seeds, powders, pellets, and other light to medium-density bulk materials.

What are the main features of an E elevator bucket?

E elevator buckets are designed to provide stable material handling, smooth discharge, and efficient conveying performance in bucket elevator systems.

What materials are available for E elevator buckets?

E elevator buckets are commonly available in HDPE, Nylon, and PU materials. Different materials are selected depending on wear resistance, temperature, and application requirements.

What industries use E elevator buckets?

E elevator buckets are widely used in agriculture, grain storage, feed mills, seed processing, and bulk material handling industries.

How do I choose the correct E elevator bucket size?

Selecting the correct size depends on bucket elevator speed, conveyor capacity, material density, bucket spacing, and mounting dimensions.

Can E elevator buckets be customized?

Yes, E elevator buckets can be customized in size, hole pattern, material type, and thickness to fit specific elevator systems or project requirements.

What are the advantages of using E elevator buckets?

E elevator buckets provide reliable conveying performance, efficient material movement, lightweight construction, and compatibility with different bucket elevator configurations.
