What is Drop Forged Chain?

Drop forged chain is a heavy-duty conveyor chain manufactured through a hot forging process, where each link is formed from a single piece of steel.

This process aligns the internal grain structure of the metal, resulting in significantly higher strength and durability compared to welded or cast chains.

It is widely used in applications where high impact, abrasion, and extreme working conditions are present.

Used in applications where standard chains fail.

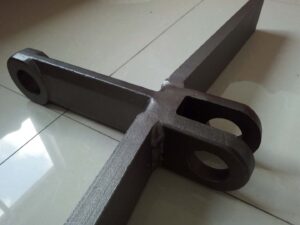

scraper forged chain link

Key Features

• One-piece forged link structure eliminates weak points
• Superior tensile strength and load capacity
• Excellent resistance to wear, shock, and deformation
• Reliable performance in harsh environments (dust, heat, abrasion)
• Easy installation and replacement with detachable link design
• Long service life, reducing maintenance cost

Drop forged chains are considered one of the most durable solutions for industrial conveying systems.

Typical Applications

Drop forged chains are widely used in:

• Mining and quarry operations
• Cement and clinker conveying systems
• Coal, ash, and bulk material handling
• Wood processing and recycling plants
• Grain and fertilizer conveying systems

They perform reliably in environments where standard chains would fail due to wear or impact.

Technical Drawing with Picture

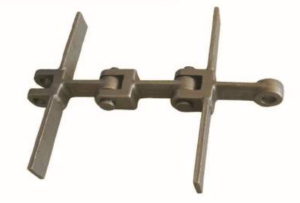

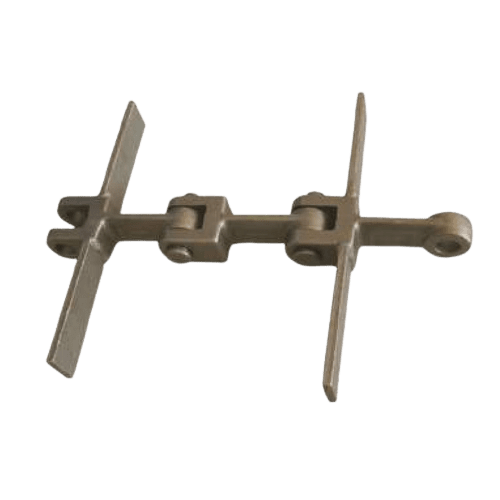

drop forged chain drop forged chain drawing

Specification

Pitch
P		 Pin
dia
d		 Plate
width
H		 b1 b2 b3 T1 T2 L Tensile
strength
100 14 30 15 33 16 13 6(8) Welded attachment
plate can be
customized		 160KN
102 14 36 13 30 14 9 6(8) 150KN
125 17 35 17 34 18 8 6(8) 150KN
142 25.4 50.8 19 43 20 12.2 8(10) 280KN
142(H) 25.4 50.8 29 62 30 15 8(10) 460KN
150 18 40 18 40 20 11.5 6(8.10) 200KN
200 21 45 20 42 22 12.2 6(8.10) 200KN

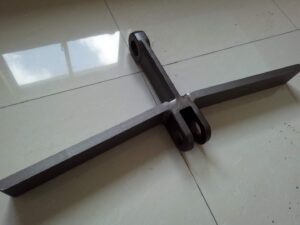

drag forged chain link

Drag Redler Forged Chain Conveyor

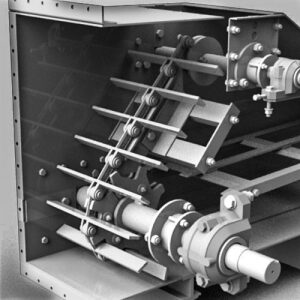

forged chain covneyors

Types of Drop Forged Chain

There are several common types available:

• Standard Type – general-purpose applications
• X-Type – improved flexibility and performance
• S-Type – suitable for welding attachments and heavy-duty use

Different flight attachments (scraper, paddle, U-type, etc.) can be customized according to application requirements.

Customization Options

We can supply drop forged chains based on your working conditions:

• Different pitches and dimensions
• Carbon steel or alloy steel materials
• Heat treatment options for higher wear resistance
• Various flight attachments and configurations
• Matching sprockets and conveyor components

Drop Forged Chain vs Welded Steel Chain

Compared with welded steel chains, drop forged chains offer:

• Higher strength due to forged structure
• Better resistance to cracking and fatigue
• Longer service life under heavy loads
• More reliable performance in harsh environments

This makes drop forged chains the preferred choice for critical heavy-duty applications.

Used in applications where standard chains fail.

Drop Forged Chain vs Offset Sidebar Chain: How to Choose the Right Conveyor Chain?

When selecting a heavy-duty conveyor chain, two of the most commonly used types are drop forged chain and offset sidebar chain.

Both are designed for bulk material handling, but they differ significantly in structure, strength, and application scenarios.

Feature Drop Forged Chain Offset Sidebar Chain
Manufacturing Process Hot forged (one-piece link) Welded steel construction
Strength Extremely high High
Impact Resistance Excellent Good
Wear Resistance Excellent Good
Flexibility Moderate Higher
Maintenance Easy (detachable links) Moderate
Cost Higher More economical
Typical Use Mining, cement, heavy industry Grain, feed, bulk handling

Structure Difference

Drop forged chain is made from one-piece forged links, eliminating weak points and providing maximum strength.

Offset sidebar chain uses a welded steel cranked link structure, offering better flexibility and cost efficiency.

How to Choose?

Choose Drop Forged Chain if:

• Your application involves heavy impact or shock loads
• Working conditions are extremely harsh (abrasive, high temperature)
• Long service life is critical
• Downtime must be minimized

👉 Used in applications where standard chains fail

Choose Offset Sidebar Chain if:

• You need a cost-effective heavy-duty solution
• Load is high but not extreme
• Application is grain, feed, or general bulk handling
• Flexibility and smooth conveying are important

For a complete conveyor solution, you may also need:

Offset Sidebar Chain – ideal for heavy-duty drag conveyors

Scraper Chain – widely used for bulk material transport

Chain Sprocket – ensures stable and efficient chain operation

FAQ – Drop Forged Chain

What is a drop forged chain?

A drop forged chain is a heavy-duty conveyor chain manufactured through a hot forging process. Each chain link is formed from a single piece of alloy steel, providing high strength, durability, and reliable performance in demanding conveying environments.

What are drop forged chains used for?

Drop forged chains are commonly used in drag conveyors, scraper conveyors, mining systems, cement plants, grain handling, fertilizer conveying, and other bulk material transport applications requiring heavy-duty performance.

What are the advantages of a drop forged chain?

Drop forged chains offer superior tensile strength, excellent wear resistance, strong impact durability, and longer service life compared with welded or cast chains. Their forged one-piece structure reduces weak points and improves reliability.

What materials are used to manufacture drop forged chains?

Drop forged chains are typically made from alloy steel or heat-treated carbon steel. The forging process improves grain structure alignment, resulting in stronger and more durable chain performance.

What types of drop forged chains are available?

Common drop forged chain types include standard type, X-type, and S-type chains. Different attachment styles such as scraper flights, paddles, and U-type flights can also be customized based on conveying requirements.

What is the difference between a drop forged chain and an offset sidebar chain?

Drop forged chains are made from one-piece forged links and provide higher impact resistance and strength for harsh environments. Offset sidebar chains use welded steel construction and are typically more flexible and cost-effective for general heavy-duty conveying.

How do I choose the correct drop forged chain?

Selecting the correct drop forged chain depends on conveyor load, material abrasiveness, operating temperature, chain pitch, attachment type, and sprocket compatibility. Proper sizing ensures reliable performance and longer service life.

Can drop forged chains be customized?

Yes, drop forged chains can be customized by pitch size, material grade, heat treatment, attachment design, and flight configuration to meet specific conveyor system requirements.

👉Looking for a reliable drop forged chain supplier?
Send us your drawing or working condition — we will recommend the most suitable chain within 24 hours.
