PU Polyurethane Sheet Rod

  • PU Polyurethane Sheet Rod has a strong anti-wear ability, about four times that of UHMW PE. Anti-impact, anti-static.
  • Do not burn even meeting the fire flame.
  • Have two sheets: a standard PU Polyurethane sheet of 4-30mm, and a steel wire mesh type of PU sheet is 6-30mm, commonly not over 20mm.

Additional information

Style

Sheet, Rod, Tube, Wire Mesh

Details of PU Polyurethane Sheet Rod

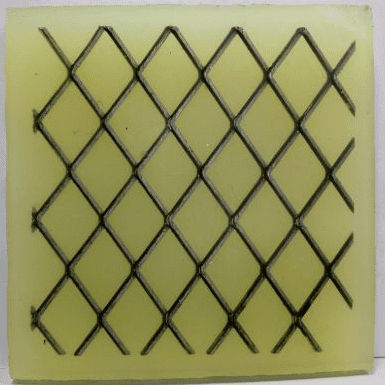

PU Polyurethane Sheet Rod, Polyurethane Coated Steel Wire Rope Screen

PU Polyurethane has good performance of wear resistance, impact resistance and anti-static.

It has a wide adjustable range of hardness.

PU with steel mesh keeps the original material performance of the soft, and anti-impact, and also significantly reduce the sheet ageing broken problem, then expands the product use life of the sheet.

It is widely used in the port, granary chute as a buffer board and lining panel. It can also be used for the smaller chute as a grain slid tube. The operation noise is low, the use life is long and the good performance ensures a reduction in the breakage rate of the material during transportation.

Technical Data of the PU Polyurethane Sheet Rod

Item Units Test Method Value
Hardness Shore   A HG827-76 65-98
Density g/cm3 ASTM1505 1.27
Tensile Strength Mpa GB/T528-2009 ≥40
Residual Deformation % GB/T528-2009 ≤10
Elongation % GB/T528-2009 ≥450
Tearing Strength KN/m GB/T528-2009 ≥80
Akron Abrasion cm3/1.61km HG4-827-76 ≤0.06
Rebound Degree % GB/T528-2009 ≥25
Surface Resistivity Ω 7.8X108~10
Coefficient of Friction 0.5-0.6
Melting Point 150-180

Specification of PU Polyurethane Sheet Rod

Name Length(mm) Width(mm) Thickness(mm) Outside Diameter(mm)
Sheet ≤2000 ≤1200 5-6
≤5000 ≤1500 >6
Rod 100-1000 300-1000
Grain slid tube 2000-4000 4.2 297-397

Purchase Guide for PU Polyurethane Sheet Rod

  • Our biggest PU Polyurethane sheet dimension is 5000x1260mm, actually, we use two moulds 2500x1260mm together to reach this dimension. Under the dimension 2120x1260mm, all the sizes we can cut by your requirement.
  • There are two types of PU Polyurethane products(density 1.27kgs/cbm), one is the common PU Polyurethane, and another is the wire mesh screen PU Polyurethane coated product.
  • Thickness range for production: common PU Polyurethane sheet is 4-30mm, steel wire mesh type of PU sheet is 6-30mm, commonly it is not over 20mm.
  • Use temperature: under 75℃.
  • Features: It has a strong anti-wear ability, which is about four times that of the UHMW PE sheet. Small shrinkage rate, stable in performance, anti-static, does not burn in case of the fire flame.

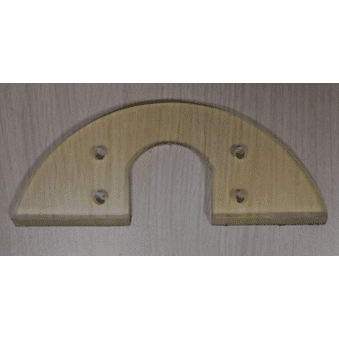

  • Purpose: PU plastic flight, lining plate instead of UHMW PE and sliding tube( the max temperature for sliding tube is 65℃.)
