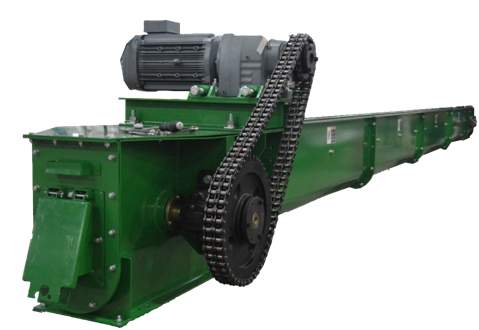

Scraper Conveyor of conveying system
Nose, tail
Design of arc-shaped nose to prevent material accumulation

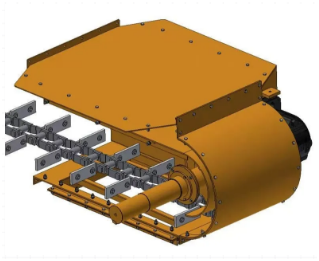

Anti-accumulation design of machine tail
Chain of conveying system

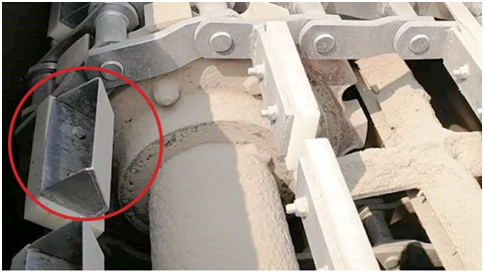

A small return metal chain bucket is added to the chain. When the material is left, the small return hopper will transport the remaining material to the discharge port of the scraper.
U-shaped scraper
U-shaped bottom design prevents the material accumulation
(Generally used indoors, output ≤100TPH)
Belt conveyors of conveying system

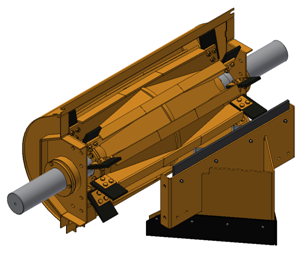

Back sweep “paddle” and “V-shaped plough” structure
Due to the large impact force, the material at the feed port of the belt conveyor is likely to fall to the bottom return section and pass through the conveyor belt to the tail area.
When the material is conveyed to the end of the machine of the conveying system, the material is “distributed” to both sides of the belt conveyor through a “V-shaped plough” structure, and is thrown back to the upper conveyor section of the belt conveyor by the slightly inclined “paddle”.

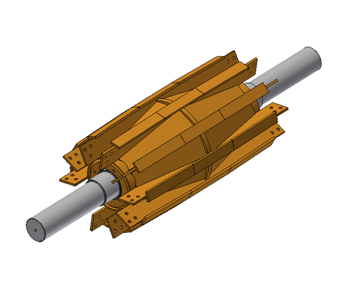

Self-cleaning tail wheel
The self-cleaning “spindle”-shaped tail wheel is designed to centrifuge the material entering the tail to both sides, and then is swept back to the conveyor section of the belt conveyor by the flyback “paddle”.
Belt cleaner
When conveying wet or sticky materials, the materials may adhere to the surface of the belt and cannot be cleaned. A belt cleaner (scraper) can be configured to remove it.
The belt cleaner is generally made of soft, wear-resistant polyurethane and other materials, which can avoid damage to the belt surface while cleaning the attachments.
For special powder materials, brushes can also be configured to clean them.
Bucket elevator of conveying system
Nose, tail

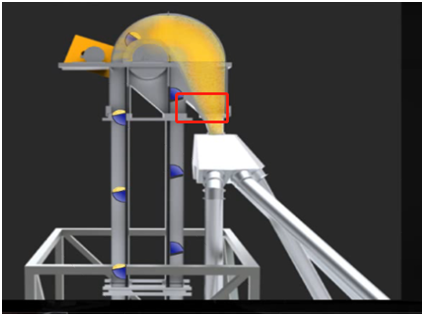

Parabolic curve design of the nose back

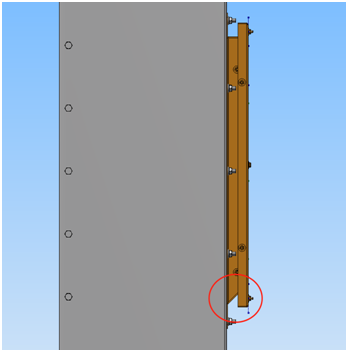

Adjustable “tongue” to reduce material return

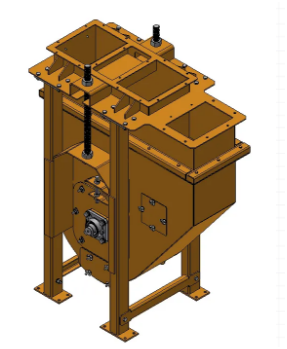

Circular arc design to avoid residual material in the tail
Explosion vent door and observation window
The inner side is designed with a 60 degree inclination angle to avoid accumulation of materials and dust.
Kerberway pipeline (chain) conveyor
The pipeline (chain) conveyor has the advantages of high cleanliness and flexible curve transportation. We focus on several common cleaning methods of the American Cablevey transportation system.

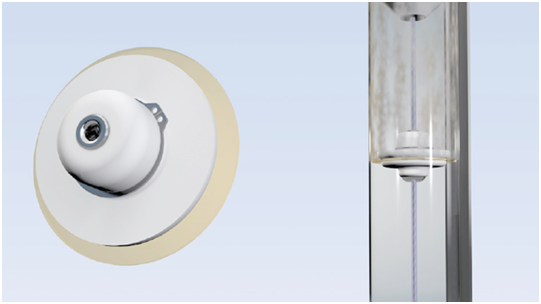

Polyurethane ring edge scraper of conveying system

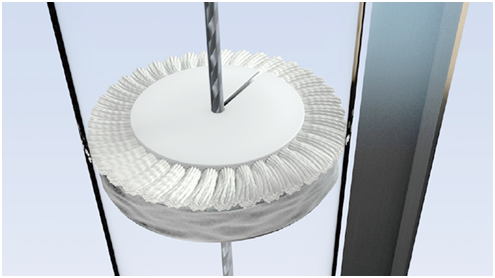

Ring edge brush disc

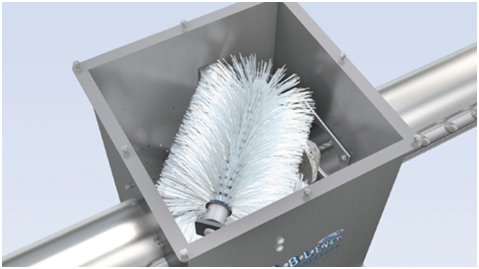

Brush box

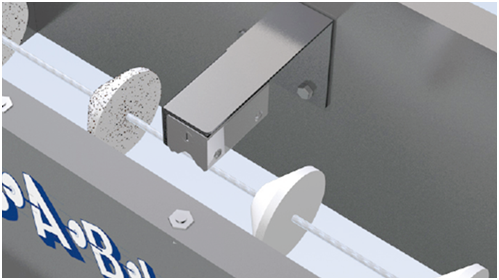

Air knife

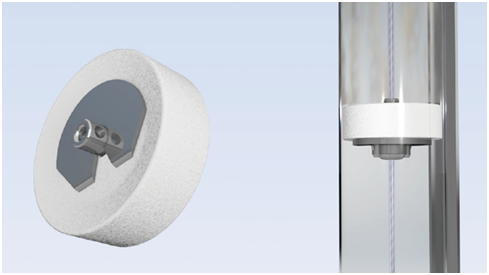

Sponge scraper

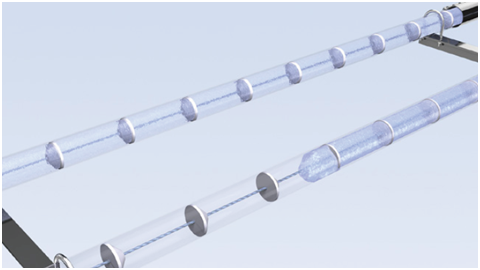

Flushing system
If the cleaning requirements are very strict, we can also flush the entire system with hot water, detergent, disinfectant, etc. to achieve a high standard of cleanliness.
