Belt Conveyor Brush Cleaner

Content
belt conveyor brush cleaner

Electric Roller Brush Cleaner

The electric roller brush cleaner is mainly used to clean the surface of the roller and the bottom surface of the conveyor belt.

Working principle

The motor drives the cylindrical nylon brush, and the brush tip is in slight contact with the surface of the conveyor belt. The rotation direction of the nylon brush is opposite to the running direction of the return conveyor belt so that the fine particles sticking to the belt surface are brushed off to achieve the cleaning effect.

electric roller brush cleaner

Nylon Brush Cleaner

Brush cleaners are also called nylon brush rotary cleaners, electric rotary cleaners, and electric roller brush cleaners.

Working principle

The rotary cleaner is located under the return conveyor belt of the conveyor, and the cylindrical nylon brush is driven by the motor or the driving roller. On the contrary, the microparticles sticking to the belt surface are brushed off to achieve the purpose of thorough cleaning.

Features

It can effectively clean the adhesion on the surface of the roller and the bottom surface of the conveyor belt, prevent the deviation of the conveyor belt, prolong the service life of the conveyor belt and accessories, and prevent accidents. It is an essential accessory for belt conveyors. At the same time, the roller brush can be replaced.

The structure I rotary cleaner is composed of a motor, reducer, cleaning roller, coupling, bearing seat and adjusting frame.

Structure II is a mechanical rotary cleaner consisting of a driving drum, a cleaning drum, a pulley, a bearing seat, an adjusting frame, and a V-belt, and is suitable for places without a power supply.

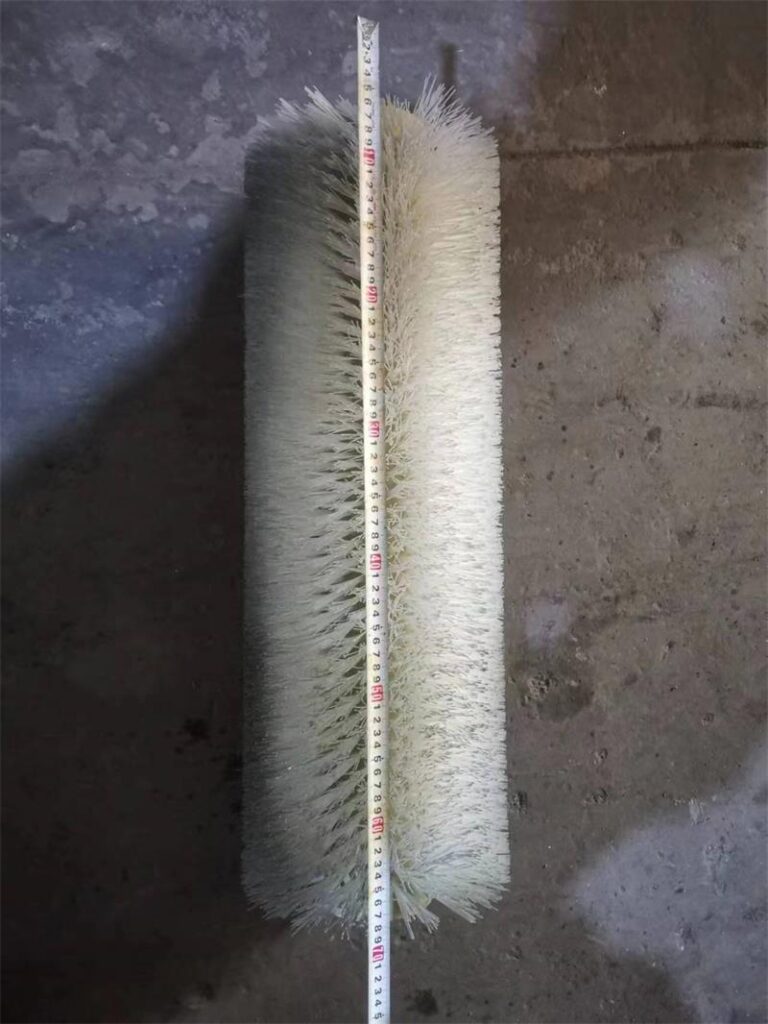

Brush

We can only produce the belt conveyor brush for you. The size could be customized.

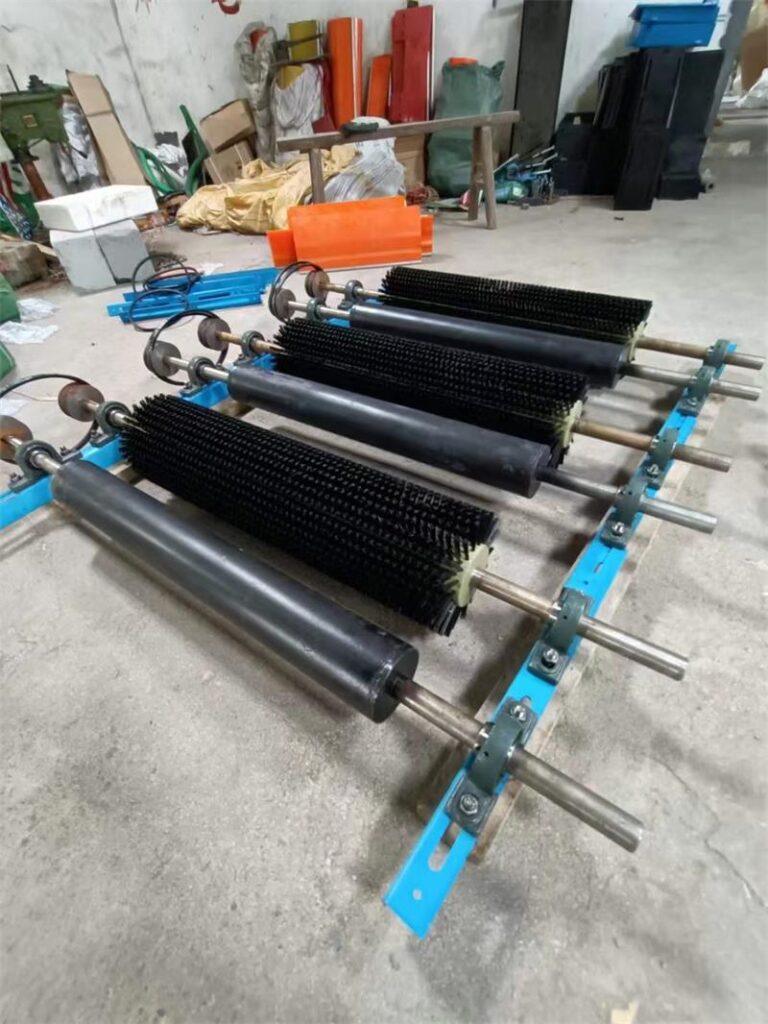

Workshop of belt conveyor brush cleaner

workshop for belt conveyor brush cleaner

Application for belt conveyor brush cleaner

application for belt conveyor brush cleaner
